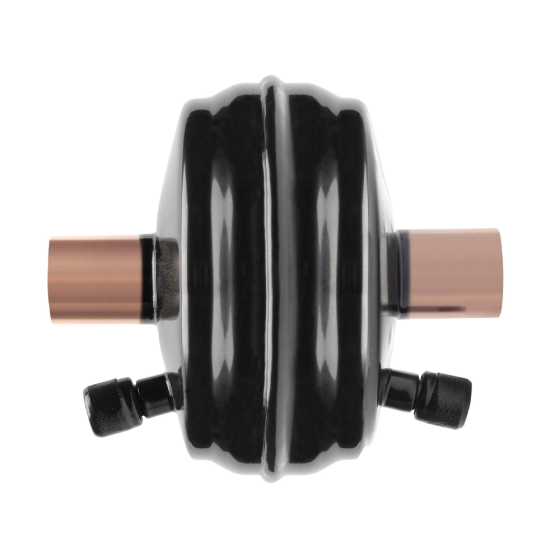

Suction Line Filter Drier 3/4" ODF (Solid Core - For Burnouts)

PRODUCT DETAILS

SLD Series - For Refrigeration and Air Conditioning The SLD Series is a solid core clean-up filter-drier for use in the suction line for both refrigeration and air conditioning systems. The compact design incorporates a large outside diameter shell, which results in a shorter lay-in length, and a larger core, which provides a greater filtration area for maximum operating efficiency.

The core material has controlled porosity which effectively removes and holds a maximum amount of contaminants with a minimal pressure drop. In addition, the core material collects and holds acids and other harmful contaminants present after a motor burnout.

FEATURES & BENEFITS

• Molded porous core.
• High acid capacity.
• Low pressure drop — exceptionally high flow rates.
• Designed for system clean-up.
• 500 hours salt spray protection.
• Short system cut-out lengths allow installation in tight areas.
• Access valves simplify pressure drop measurement.
• ODF Solder fittings.
• 355 psig (24.5 bar) MRP.
• UL Listed under SMGT/SMGT7-SA1756.
• Desiccant Volume: 14cu. in.
• Connection Inlet Size: 3/4"
• Connection Outlet Size: 3/4"
• Overall Length: 4.83"
• Shell Diameter: 4.42"
