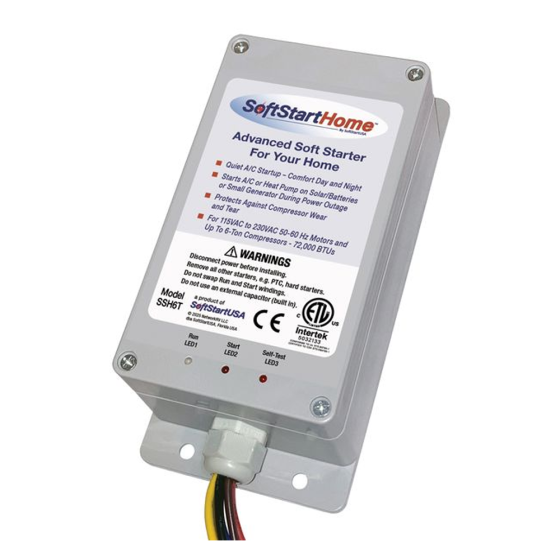

DiversiTech® Soft Start Kit 6 Tons, 110/220V

Item
SSH6T
  • California Prop 65

FEATURES

The SoftStartHome SSH6T soft start is designed for residential AC systems up to 6 tons. Soft starts ramp up power to reduce inrush of current to components and reduce power demand on start up. This reduces the stress on components and can allow systems to be supported by backup power.

  • • Quiet A/C startup - no jarring thump, flickering lights or tripping breaker when A/C starts
  • • Low-amp startup reduces strain on compressor to help extend A/C life
  • • Helps start and run A/C on a backup generator
  • • Starts home A/C with solar energy system without straining battery power supply to other appliances
  • • Easier and quicker to install than other A/C soft starters


  • SPECIFICATIONS

    POWER RATING
  • • 110VAC (90~135VAC) & 220VAC (187~226VAC), 1 phase
  • APPLICATION
  • • 6-ton (72,000 BTU) and 3-ton (32,000 BTU central air conditioners/heat pumps
  • INDOOR/OUTDOOR
  • • Indoor/Outdoor
  • ENCLOSURE MEDIUM
  • • Module housing sealed in epoxy resin
  • Electrical
    Voltage 110/208/230
    Safety Standards
    California Prop 65 Yes
    Weights and Dimensions
    Operating Weight (lbs) 2
    Exterior Dimensions (D) (inches) 4.000000
    Exterior Dimensions (W) (inches) 4.000000
    Exterior Dimensions (H) (inches) 8.000000
    Shipping Weight (lbs) 2.000000
