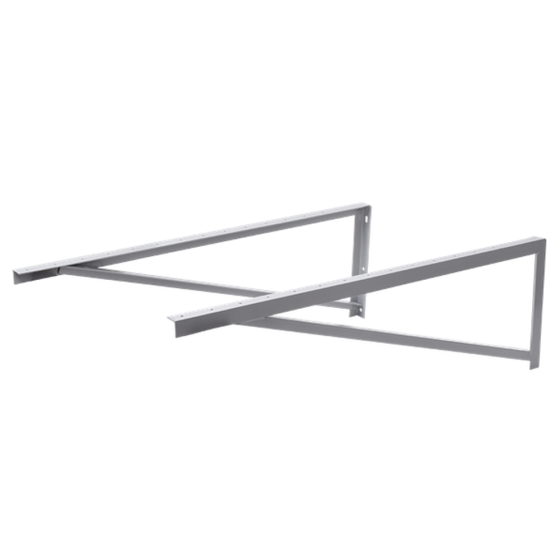

DiversiTech® Mini-Split Wall Bracket, 600 lbs Capacity

Item

ACB-48-AL

FEATURES

The DiversiTech® A/C wall bracket, ACB-48-AL is a pair of 48 in. aluminum wall brackets used for hanging A/C condensers and heat pumps to the side of a home or building. It is constructed from 3/16 in. aluminum and supports up to 600 lbs. per pair. Installing these brackets avoids time lost waiting for finished grade or landscaping prior to installation of AC unit. These aluminum brackets provide excellent performance in coastal and other harsh environments.

• Load rating of 600 lbs. per pair

• Avoids time lost waiting for finished grade or landscaping prior to installation of AC unit.

• Pre-punched 7/16 in. holes for easy installation to wall structure. Pre-punched 15/64 in. holes for equipment mounting

• Made of heavy-duty aluminum, excellent for coastal and other harsh environments

• Mount at any height to allow for easy maintenance under units.

SPECIFICATIONS

• Adjustable: Yes

• Base / Mount: Wall

• Load Capacity: 600 lb. per Pair

• Rating: Wind/Hurricane

• Arm or Shelf Length: 48 in.

• Mounting Method: Concrete Siding, Block, Brick, Stucco

• No. of Arms: 2

• Product Width: Variable

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	20
Exterior Dimensions (D) (inches)	48.000000
Exterior Dimensions (W) (inches)	18.000000
Exterior Dimensions (H) (inches)	5.000000
Shipping Weight (lbs)	20.000000

Resources

ACB-48-AL_Submittal.pdf

ACB-48-AL_TDS.pdf
