DiversiTech® Hef-T-Foot™ Install Kit, 3.5" H x 6.3" W x 23.6" L, 880 lbs

Item

FF-600-S-KIT

FEATURES

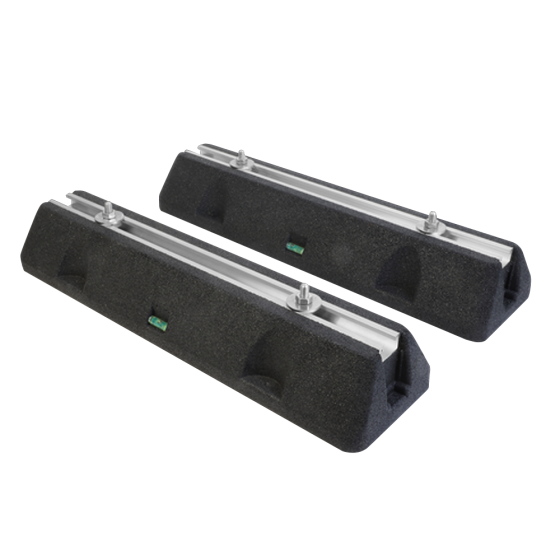

he Hef-T-Foot™ FF-600-S-KIT is a mini split installation kit that includes a pair of 23.6 in. rubber bases with strut inserts that are used to mount A/C condensing units, air source heat pumps and a variety of outdoor equipment. All necessary hardware to attach equipment to the Hef-T-Foot is included with the kit. The FF-600-S-KIT foot base dimensions are 23.62 in. L x 7.28 in. W x 3.94 in. H. The extruded aluminum strut insert dimensions are 23.62 in. L x 1.6 in W. x .83 in. H.

• Complete kit comes with 2ea Hef-T-Foot™ base supports and hardware necessary to attach ductless equipment to bases

• High-quality heavy-duty compression molded rubber provides solid base and absorbs vibration and sound

• Environmentally friendly, manufactured from recycled rubber

• Comes with .8 in. x 1.6 in. extruded aluminum strut adhered to the rubber with industrial adhesive

• Maximum load 880 lbs. per pair

• Impact Resistant

• Made in the USA

• Impact Resistant

SPECIFICATIONS

• Includes: Hardware

• Color: Black

• Load Capacity: 880 lb. per Pair

• Size: 23.6 in

• Mounting Method: Strut

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	34
Exterior Dimensions (D) (inches)	24.000000
Exterior Dimensions (W) (inches)	14.000000
Exterior Dimensions (H) (inches)	4.000000
Shipping Weight (lbs)	34.000000

Resources

FF-600-S-KIT_TDS.pdf
