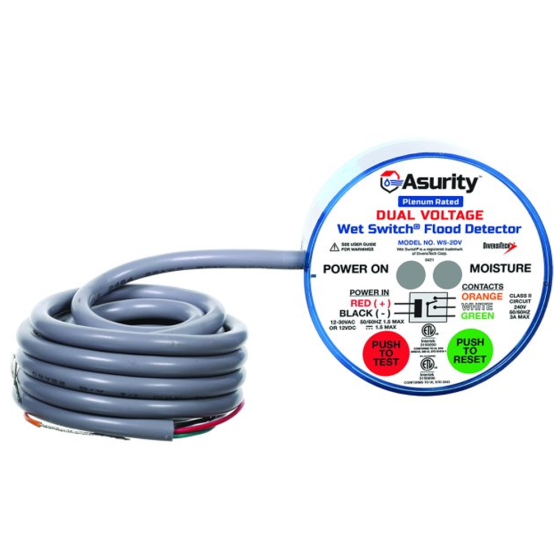

DiversiTech® Dual Voltage Flood Detector 24V

FEATURES

The Asurity® WS-2DV Wet Switch Dual Voltage Flood Detector has 12-Volt DC connections for installation into building automation systems and will transmit alarm signals to building maintenance if a flood is detected. It can also connect to a 24-Volt AC installation allowing integration with all HVAC systems and will shut down the HVAC system if a flood is detected. Two sets of dry contacts for shutting down the equipment and signaling alarm system or building automation systems at the same time. Reset by simply drying the absorbent pad with a paper towel and pressing the reset switch. Connect multiple switches to expand protection area and connect to multiple pieces of equipment simultaneously.

• Includes both12-Volt DC connections for building automation systems and 24-Volt AC installation allowing integration with all HVAC systems - will shut down the HVAC system if a flood is detected.
• Turns off equipment with as few as 1-2 drops of water detection
• Connect multiple switches to expand protection area
• Connects to a 24VAC power supply, the standard power available on most air handler units or 12VDC power, standard power available on most alarm and home automation systems
• Easily check that the Wet Switch is working normally with the push to test & push to reset buttons
• LED indicators confirm system status
• Flexible placement options
• This switch is Plenum rated

SPECIFICATIONS

• Includes: 5 Wire Nuts
• Product Type: Pan-Mounted
• UL Listed: No
• Alert Indicator: Visual
• Electrical Classification: Class 2
• Electrical Connection Type: Independently Powered
• Plenum Rated: Yes
• Rated Current (A): 3
• Rated Voltage: 250V
• Switch Mode: One set of isolated contacts
• Test Switch / Button: Yes
• Switch Type: SPDT
