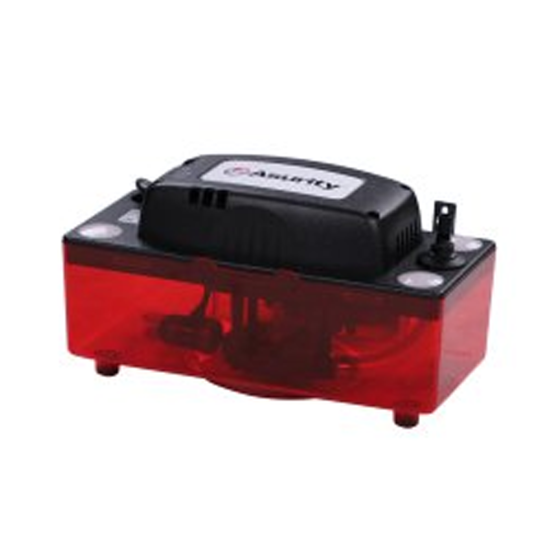

The Asurity® ULTRACP-22T Condensate Pump is a 120 volt pump with 22 ft of lift. It comes with innovative features such as a translucent tank for easy & fast inspection, vibration dampening feet & motor mounts, metal mounting tabs, four inlet holes (and 3 poly covers for the unused), LED indicators, float switch and duckbill-style check valve, and detailed installation instructions. Two 1/4in. quick connect terminals provide the installer fast and easy connections to the built-in overflow switch to shut-down the system and prevent flooding, an important safety feature. 20 ft of 3/8 in discharge tubing is included.
FEATURES & BENEFITS
• 22 ft maximum lift height • LED Indicators Confirm Pump Status • Built-in Safety Overflow Switch • Reversible deck for more installation options • Removable Check Valve for Easy Cleaning • Vibration dampening feet and motor mounts minimize sound • 4 inlet holes • 20 ft of tubing included for easy installation • Volts: 115 • Amps: 1.9 • Hertz: 60 • Horsepower: 1/30 • UL Listed • Discharge Line (In.): 3/8 • Floatless Sensor: No • GPH (Gal./Hr.) @ 10 Ft. Lift: 108 • High Level Switch: Yes • Input Type: NEMA 5-15 Plug • Max Condensate Temp. (Degrees): 160°F • Max Flow Rate (GPH): 132 • Max Lift Height (Ft.): 22 • Self-Cleaning: No • Tank Capacity (Gal.): 1/2 • Variable Speed and Lift: No
