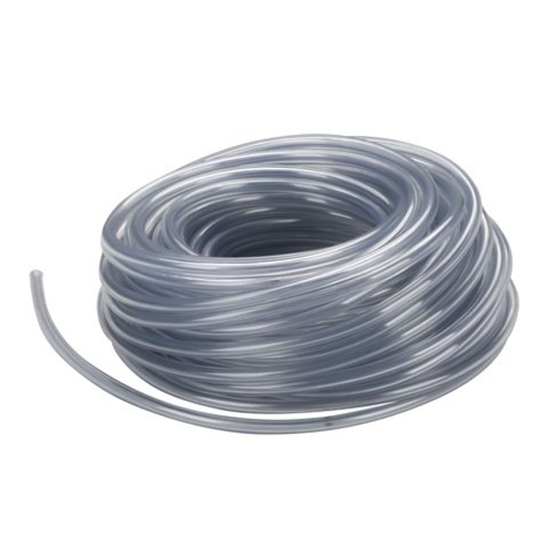

DiversiTech® Clear Vinyl Tubing, 3/16", 100'

Item

7-CVMINITUBE

Skip to the beginning of the images gallery

FEATURES

7-CVMINITUBE is for use with air conditioning and refrigeration condensate drains, condensate pump discharge lines and humidifier overflow drain lines. This tubing is designed to be kink resistant, lightweight and flexible. Made of high quality materials with smooth interior and exterior that prevents sediment accumulation, allows easy flow. The tubing is easy to shape, bend and install.

• Clear Vinyl Chloride (PVC)

• Reinforced polyester caliber 300-500

• Extra rigid design resists crimping and kinking due to durometer value of 78-80 (shore A)

• Service temperature 140° F. (60° C.)

SPECIFICATIONS

• Color: Clear

• Product Length: 100 ft.

• Diameter ( in.): 3/16 in.

• Durometer: 85 ± 5 (Shore A)

• Insulation Thickness: 0.038 in.

• Working Temp.: 23°F to 140°F

Specifications

Safety Standards
California Prop 65	Yes

Specification
Length	100'
Fitting Size	3/16"

Weights and Dimensions
Operating Weight (lbs)	5
Exterior Dimensions (D) (inches)	10.000000
Exterior Dimensions (W) (inches)	10.000000
Exterior Dimensions (H) (inches)	4.000000
Shipping Weight (lbs)	5.000000
