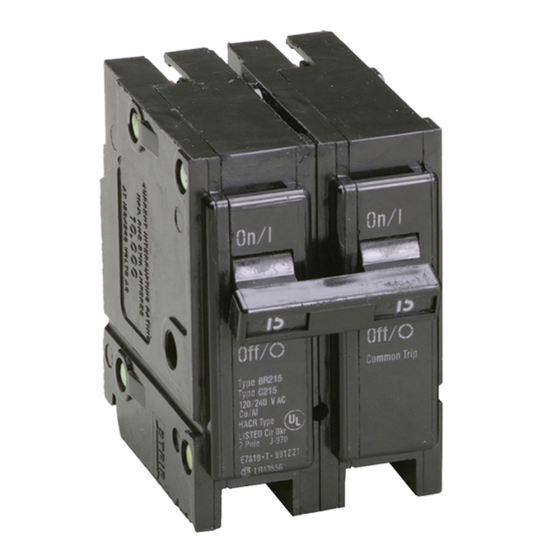

DiversiTech® BR215 Eaton Circuit Breaker, Type BR, 1", Two Pole, 120/240V, 15A

Item

BR215

Skip to the beginning of the images gallery

FEATURES

The DiversiTech® BR215 Eaton Circuit Breakers, Type BR, 1 in., Two Pole, 15 Amps circuit breakers are 1-inch per pole plug-on circuit breakers designed for Eaton’s Type BR Load centers. They are 10 kAIC arc fault circuit interrupters rated for 120VAC or 240VAC applications. This product was made for the DiversiTech branded items.

• All BR circuit breakers have rejection tab feature.

• Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design.

• UL approved genuine replacement breakers for load centers made by Westinghouse, Challenger and Bryant.

• Protects wires from overheating (overload) and fault currents (short circuit).

SPECIFICATIONS

• Volts: 120/240

• Wire Capacity: 14 - 4

• Product Width: 2 in.

• UL Listed: Yes

• Amps: 15

• No. of Poles: Double

Specifications

Safety Standards
California Prop 65	Yes

Specification
Amp Rating	15

Weights and Dimensions
Operating Weight (lbs)	2
Exterior Dimensions (D) (inches)	3.000000
Exterior Dimensions (W) (inches)	3.000000
Exterior Dimensions (H) (inches)	3.000000
Shipping Weight (lbs)	2.000000
