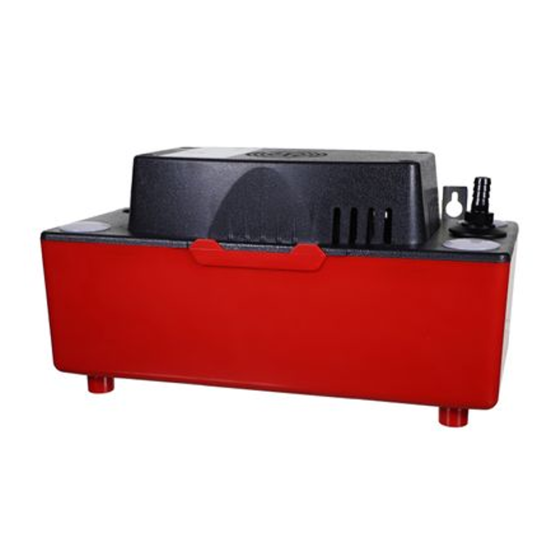

Asurity® PROCP-22S series pumps beat the industry standard of 20’ lift height by 2 feet and come with innovative features such as: vibration dampening motor mounts, metal mounting tabs, four inlet holes (and 3 poly covers for the unused), built in safety overflow switch for added protection and detailed installation instructions.
• Maximum Condensate Temperatures
○ Continuous duty 140°F
○ Maximum inlet temperature 160°F
○ Not suitable for contact with steam or gases that exceed 160°F
• Rated Voltage
○ 120VAC / 60hHz
• Rated Current Draw
○ 1.9 Amps (120VAC)
• Input Type
○ USA 3-prong molded plug (120VAC)
• Maximum Lift Height
○ PROCP-22S Series: 22’
• Flow Rate @ Zero Head
○ PROCP-22S: 1.6 gallons per minute
• Dimensions
○ PROCP-22S: 11.8” x 5.9” x 6.7”
○ PROCP-22S: 5 lbs.
• Inlet Height from Base
○ PROCP-22S: 4.4”
• Tank Capacity
○ PROCP-22S: 1/2 gallon
• Included Accessories
○ Instruction Booklet
○ Metal Hang Tabs
○ Polyethylene inlet covers (3)
○ 5” Remote Shutoff Leads
• Wiring Color References
○ Black – Live/Hot
○ White – Neutral
○ Green – Ground
○ (All installations must conform to local building codes)
