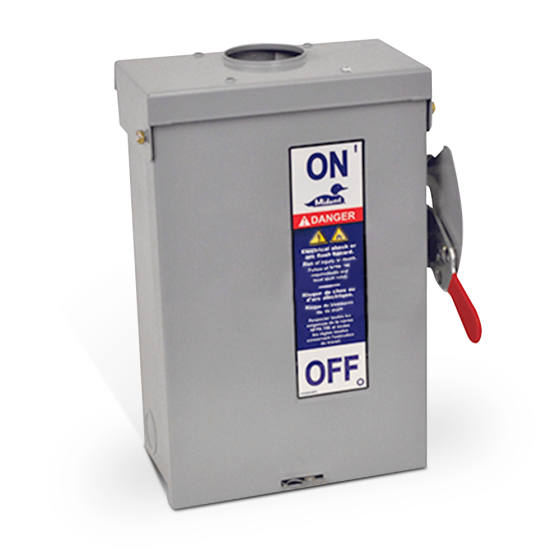

30A Fusible Disconnect 240Vac, 3 Phase, NEMA 3R
Item
83636
FEATURES & BENEFITS
• No. of Poles: 3
• Type: Top Open A/C Disconnect
• Amp Rating: 30 Amp
• Fused or Non-Fused: Fused
• Color: Gray
• Voltage Rating: 240
• Side or Top Open: Top
• Enclosure Material: Steel
• Outlet - GFI: No
• Phase: Three
• Standards: UL/CUL
• NEMA Enclosure: Rain proof, NEMA 3R Enclosure
• Dimensions HxWxD (in.) : 8.1 x 5.4 x 7
• NOTE: Uses FLNR Series Fuses, Cartridge Fuse Type
| Electrical | |
|---|---|
| Phase | 3 | Voltage | 240 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 6 | Exterior Dimensions (D) (inches) | 3.500000 | Exterior Dimensions (W) (inches) | 7.500000 | Exterior Dimensions (H) (inches) | 10.000000 | Shipping Weight (lbs) | 6.000000 |
