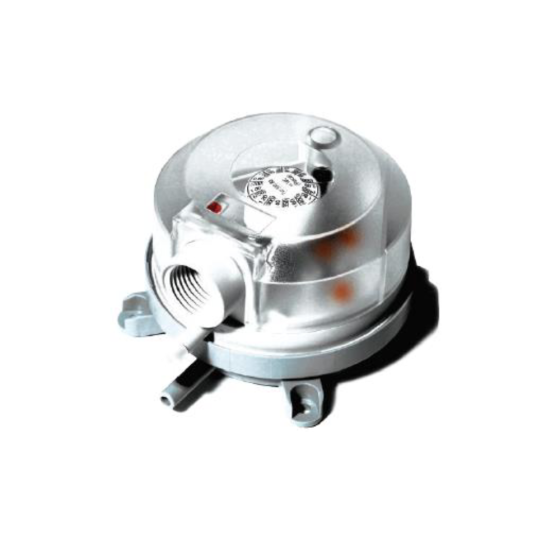

Diff Press Switch 0.2-2.0'' WC

APPLICATIONS

The NSA-DBL Series Differential Pressure Switches are general purpose pressure switches designed for both HVAC and Energy Management applications. These pressure switches can be used to sense positive, negative, or differential air pressures when used in conjunction with an NSA-DBZ-06 DBL Series Duct Mount Kit. The NEMA 3 (IP54) rated weather proof plastic enclosure contains an On/Off, single stage micro switch and two pressure chambers separated by a silicone diaphragm. The enclosure also contains a ½” conduit knockout and guards against accidental contact with the live switch terminal screws as well as the factory calibrated linear set point adjusting knob. The set point can be adjusted without comparing to a field gauge, manometer or magnehelic.

FEATURES & BENEFITS

• Adjustable Set Point Range Inch WC(Pa): 0.20 to 2.0 (50 to 500)
• Adjustable Set Point Switching Differential: Factory Default: +/- 15% of Trip / Set Point; Factory set switching differential is+ 15% of trip/setpoint. See ordering grid below for adjustable switching differential range.
• Contact (Load) Rating: 250 VAC maximum, 1.0A Resistive (0.4A Inductive)
• Contact Arrangement: SPDT (Form 1C) w/ Automatic Reset
• Measured Media: Air and other non-combustible, non-aggressive gases
• Diaphragm Material: Silicone
• Maximum Operating Pressure: 40” wc (10 kPa)
• Life Expectancy: 1,000,000 cycles
• Operating | Storage Temperature Range: -4 to 185ºF (-20 to 85ºC)
• Mounting Direction: Any vertical plane
• Enclosure Material: Base = PA6.6 / Cover = Polystyrene (Transparent)
• Enclosure Rating: NEMA 3 (IP54)
• Sample Line Connections: Accepts 3/16” ID (8mm) Push on plastic/poly tubing
• Electrical Connections: Spade (Maximum 16 AWG (1.5 mm2))
• Conduit Opening: Accepts ½” NPT Conduit
• Agency Approvals: CE, ISO 9001, RoHS2, WEEE
• Dimensions (Diameter x Height): 4.00” x 2.30” (100 x 58 mm)
• Weight: 0.40 lbs (0.20 kg)
