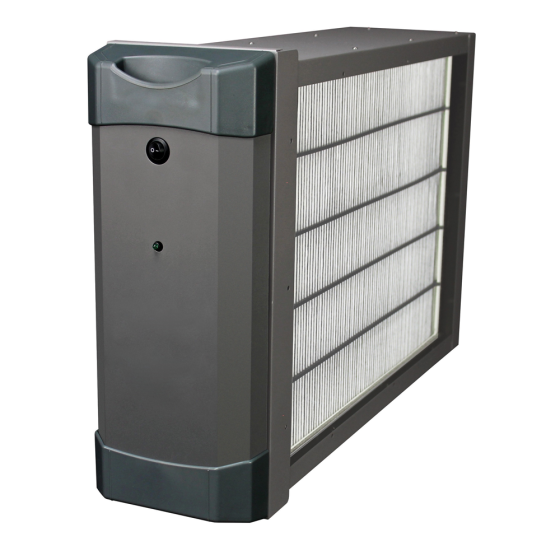

Electronic Germicidal Air Purifier 115/208/230Vac, 16" x 20", 1,600CFM, (MERV 15)

Item
DGAPAXX1620
  • California Prop 65

APPLICATIONS

The DGAPA Air Purifier treats the air flowing through your HVAC system’s air handler. It combines outstanding filtration efficiency of a MERV 15 rating with pathogen-killing technology to deliver enhanced air purification. The DGAPA Air Purifier is designed to require minimal maintenance, limited to the replacement of the air purification cartridge and inspection/brush cleaning of the ionization array. Frequency of air purifier cartridge replacement and cleaning of the ionization array may vary depending on ductwork design and local environmental conditions.

PRODUCT DETAILS

• High efficiency MERV 15
• Featuring patented Captures & Kills® technology, The DGAPA Air Purifier offers proven, third-party tested effectiveness with a 99% inactivation of captured viruses and germs when used as instructed, including: Coronavirus, Common cold surrogate, Bacteria that causes strep throat and Human influenza.
• Virtually no cleaning required. Simply change purifier cartridge periodically.
• Five distinct cabinet sizes help to ensure a perfect fit to the bottom and side of most fan coils and furnaces. Includes power cords.
• Unit can be installed in a horizontal or vertical position, which makes it equally adaptable to horizontal, downflow, or standard upflow applications.
• Power supply is a highly reliable, dual voltage compatible, state-of-the-art, solid-state device.
• Heavy-gauge steel cabinet supports up to 400 lb. when installed beneath a fan coil.
• Model DGAP air purifier is UL (Canada and US) listed.
• Dual voltage power supply 115/60/1, 208-230/60/1 built into door. 6 ft. conduit with (3) 18AWG wires with quick connect terminals
• Maximum Airflow (CFM): 1600
Replacement Media: PGAPXCAR1620-A01, PGAPXCAR1620-A02

Electrical
Voltage 115/208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 30
Exterior Dimensions (D) (inches) 24.680000
Exterior Dimensions (W) (inches) 7.250000
Exterior Dimensions (H) (inches) 18.480000
Shipping Weight (lbs) 33.000000
Specification
Filter Size 16" x 20"
MERV Rating MERV 15
CFM 1,600
