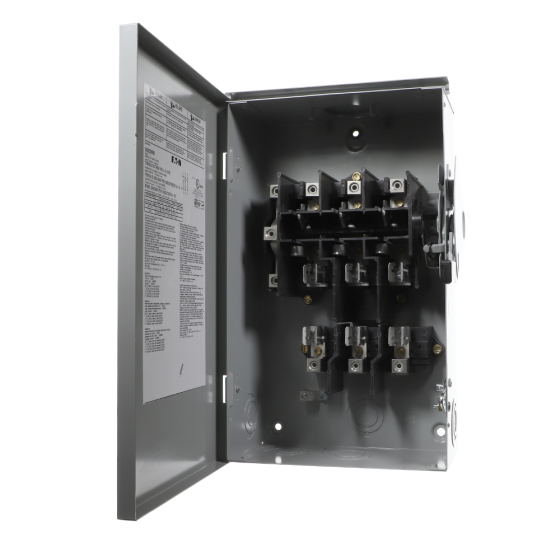

60A Fusible Disconnect, 240Vac, 3 Phase, NEMA 3R
Item
DG322NRB
APPLICATIONS
The Eaton DG322NRB 3 Phase Disconnect, 60 fusible Amps, 1/4 in., 1/2 in., 3/4 in., 1 sizes, 240VAC, these disconnects are 3-pole, 3 or 4-wire, 240VAC rated general duty safety switches. They are UL listed and meet UL 98 for enclosed switches and NEMA Std. KS-1. They are suitable as service entrance equipment when applied with neutral or ground lug kit. They come with rainproof NEMA 3R enclosure. This product was made for the DiversiTech branded items.
FEATURES & BENEFITS
• Quick and easy installation.
• Suitable as service entrance equipment when applied with neutral or ground lug kit.
• Rainproof type 3R enclosure.
• UL listed, File E5239.
• Meets UL98 for enclosed switches and NEMA Std.
• KS-1
• 3 phase
• 240V
| Electrical | |
|---|---|
| Amps | 60 | Phase | 3 | Voltage | 240 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Amp Rating | 60 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 10 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 16.000000 | Shipping Weight (lbs) | 10.000000 |
