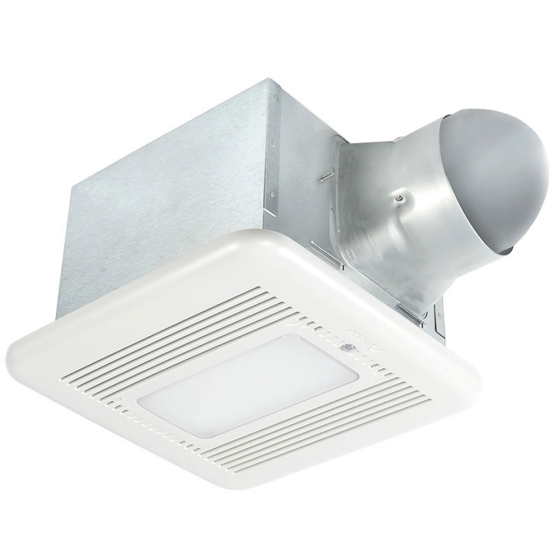

Delta BreezSignature ENERGY STAR® Certified Humidity Sensing Ventilation Fan with Light 4 in. or 6 in. Round Duct, 80 to 110CFM, 0.3 Sones, 120Vac (Multi-Speed)
Item
SIG80-110MHLED
Please Login or Register to view pricing and inventory.
The Delta BreezSignature SIG80-110MHLED ENERGY STAR® Certified Motion Sensing Ventilation Fan offers the full package of performance and control. The exceptional reliability of Delta’s DC brushless motor is combined with control options including humidity sensing, motion sensing and adjustable continuous low speed down to 30 CFM. BreezSignature boasts sound ratings of less than 0.3 Sones and operating efficiencies that far exceed ENERGY STAR v4.0 Residential Ventilating Fan requirements. Multiple control options are available. BreezSignature is available as a fan only and as a combination fan/LED light night-light.
FEATURES & BENEFITS
• ENERGY STAR® Certified with innovative brushless DC motor technology • Perfectly quiet operation at less than 0.3 Sones • Included: (1) 13-Watt LED main light (equivalent to a 60-Watt incandescent bulb) (1) 2-Watt LED night light • Main light output 800 Lumens, 3000K, 90 CRI • LED life is 30,000 hours (compare with 10,000 hours CFL life) • When motion is detected, fan runs at full speed. When user leaves, fan remains running at full speed until delay time (20 minutes) has passed, then fan runs humidity control mode • For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed. When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0, 30, 50, 60, or 80 CFM) • Adjustable humidity set points between ~50% to ~90% RH • Energy efficiency at 13.8 CFM/Watt • Ceiling mount ventilating fan/LED Light/Night-Light with motion and humidity sensor rated for continuous running • Airflow (CFM @ 0.1 SP): 80/110 • Sones: 0.3 • Power (W): 6.8/9.7 • Efficiency (CFM/Watts): 13.8/12.7 • Current (Amps): 0.48 Max • Power Rating (Vac/Hz): 120/60 • LED Main Light (Watts): 13 • LED Night Light (Watts): 2
DC Motor/Blower • Power rating of 120 volts/60Hz • Brushless DC motor engineered to run continuously • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug-in motor • Motion control selectable, fan, light or fan/light • Full speed adjustable, 80 or 110 CFM • When motion is detected, fan runs at full speed. When user leaves, fan remains running at full speed until delay time (20 minutes) has passed, then fan runs humidity control mode • For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed. When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0, 30, 50, 60, or 80 CFM) • Adjustable humidity set points between ~50% to ~90% RH
Housing • Galvanized steel body • Detachable 6” Round metal duct adapter • Includes 6” to 4” duct reducer • Built-in backdraft damper • Easy installation with expandable extension bracket
Grille • Attractive design using ABS material • Attaches directly to housing with torsion springs
Light • (1) 13-Watt LED main light (equivalent to a 60-Watt incandescent bulb) and (1) 2-Watt LED night-light included • Main light output: 800 Lumens, 3000K, and 90 CRI
LED Indicator • Blue and amber LED indicator lights to show humidity sensor and full speed modes
