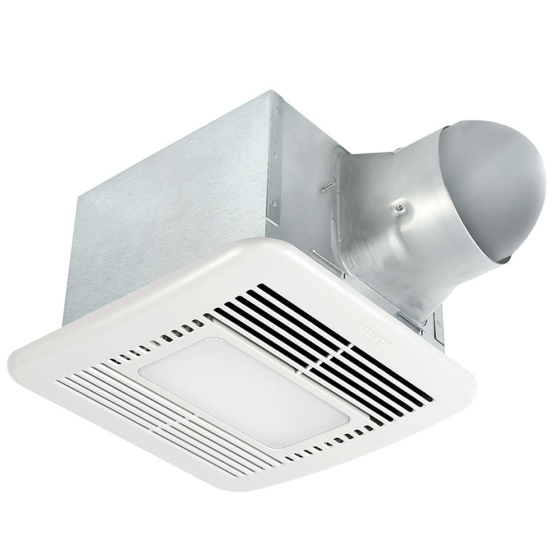

Delta BreezSignature ENERGY STAR® Certified Humidity Sensing Ventilation Fan with Light 4 in. or 6 in. Round Duct, 80 to 110CFM, 0.3 Sones, 120Vac (Multi-Speed)
Item
SIG80-110HLED
Please Login or Register to view pricing and inventory.
The Delta BreezSignature ENERGY STAR® Certified Humidity Sensing with Light Ventilation Fan is a low noise ceiling mount ventilating fan with a Dimmable LED light/night-light with humidity sensor rated for continuous running.
FEATURES & BENEFITS
• ENERGY STAR® Certified with innovative brushless DC motor technology • Perfectly quiet operation at less than 0.3 Sones • Full speed adjustable, 80 or 110 CFM • LED life is 30,000 hours (compare with 10,000 hours CFL life) • Included: (1) 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included (1) 2-Watt LED night light • Main light output: 800 Lumens; 3000K; 90 CRI for high color accuracy and compliance with CEC JA8 Title 24 requirements • Allows fan to operate in full speed mode or humidity control mode by manual switch • For continuous low speed mode, the fan runs continuously at a user-preset lower level (0, 30, 50, 60, or 80 CFM) • Adjustable humidity set points between ~50% to ~90% RH • Energy efficiency at 13.8 CFM/Watt • Green and amber LED indicator lights show continuous low speed and full speed modes • Airflow (CFM @ 0.1 SP): 80/110 • Sones: 0.3/0.3 • Power (W): 6.8/9.7 • Efficiency (CFM/Watts): 13.8/12.7 • Current (Amps): 0.48 Max • Power Rating (Vac/Hz): 120/60 • LED Main Light (Watts): 13 • LED Night Light (Watts): 2
DC Motor/Blower • Power rating of 120 volts/60Hz • DC brushless motor engineered to run continuously • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug-in motor • Full speed adjustable, 80 or 110 CFM • For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed. When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0, 30, 50, 60, or 80 CFM) • Adjustable humidity set points between ~50% to ~90% RH • Built-in soft start function to increase bearings’ life • Automatically powers off when impeller is locked abnormally • Self-compensating motor speed for intended airflow when static pressure is encountered
Housing Galvanized steel body • Detachable 6” Round metal duct adapter • Includes 6” to 4” duct reducer • Built-in backdraft damper • Easy installation with expandable extension bracket
Grille • Attractive design using ABS material • Attaches directly to housing with torsion springs
Light • (1) 13-Watt LED main light included • (1) 2-Watt LED night light included • Main light output 800 Lumens, 3000K, and 90 CRI
LED Indicator • Blue and amber LED indicator lights to show humidity sensor and full speed modes
