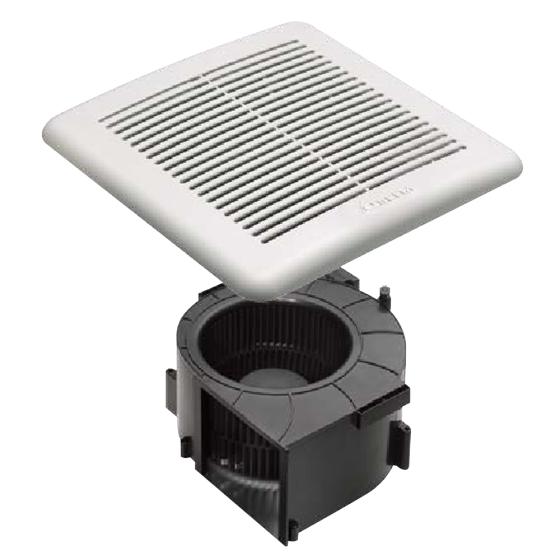

The Delta Breez GBR80-B ENERGY STAR® Certified Motor/Blade/Grille Assembly is used with the Delta Breez GBR-A Housing.
FEATURES & BENEFITS
• ENERGY STAR® Certified with innovative brushless DC motor technology • Perfectly quiet operation at less than 0.8 sones • UL approved for ceiling and wall mount installation • Green LED indicator light to show power is on • Hanger bars included • Airflow (CFM @ 0.1 SP): 80 • Sones: 0.8 • Power Consumption (Watts): 10.5 • Energy Efficiency (CFM/Watts): 7.6 • Current (Amps): 0.21 Max • Power Rating (Vac/Hz): 120/60
• DC Motor/Blower • Power rating of 120 volts/60Hz • DC Brushless motor engineered to run continuously • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug-in motor • Built-in soft start function to increase bearings’ life • Automatically powers OFF when impeller is locked abnormally • Self-compensating motor speed for intended Airflow when static pressure is encountered
• Grille • Attractive design using ABS material • Attaches directly to housing with torsion springs
