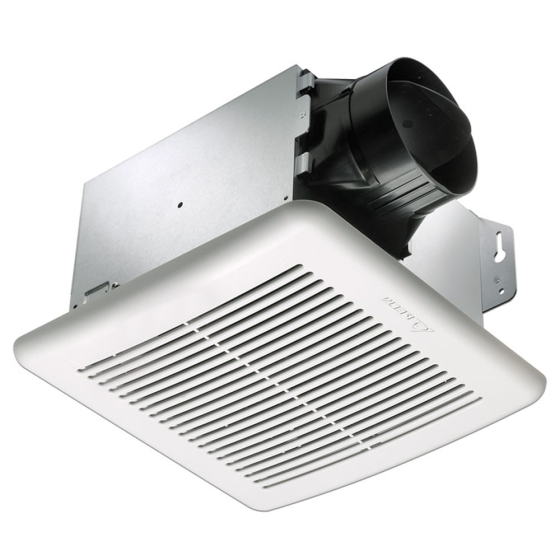

Delta BreezGreenBuilder ENERGY STAR® Certified Humidity Sensing Ventilation Fan 4 in. Round Duct, 60-100CFM, 1.4 Sones, 120Vac (Wall Mountable, Multi-Speed)

APPLICATIONS

The Delta BreezGreenBuilder GBR100H ENERGY STAR® Certified Ventilation Fan marks a new achievement in bathroom ventilation for green construction. Built upon market-leading energy efficiency, exceptionally low power consumption and quiet operation, the BreezGreenBuilder series offers a CFL or LED light option as well as humidity sensing option with continuous low speed control.

BreezGreenBuilder stays true to what has made the GreenBuilder series a winning value proposition for builders and contractors: a super reliable Delta DC brushless motor, a compact lightweight design for quick installation coupled with sound and flow ratings that far surpass building requirements...all at an affordable price.

FEATURES & BENEFITS

• ENERGY STAR® Certified with innovative brushless DC motor technology
• Perfectly quiet operation at less than 1.4 Sones
• UL approved for ceiling and wall mount installation
• For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed (100 CFM). When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0 or 60 CFM)
• Adjustable humidity set points between ~50% to ~80% RH
• Allows fan to operate in full speed mode or humidity control mode by manual switch
• UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring
• Blue and amber LED indicator lights to show humidity control and full speed modes
• Airflow (CFM): 60 @ 0.1 SP, 100 @ 0.1 SP
• Sones: 0.5 @ 60CFM, 1.4 @ 100CFM
• Power Consumption (Watts): 4.9 @ 60CFM, 12.6 @ 100CFM
• Energy Efficiency (CFM/Watts): 12.2 @ 60CFM, 7.9 @ 100CFM
• Current (Amps): 0.24 Max
• Power Rating (Vac/Hz): 120/60

DC Motor/Blower
• Power rating of 120 volts/60Hz
• DC Brushless motor engineered to run continuously
• Motor equipped with thermal cutoff fuse
• Removable with permanently lubricated plug-in motor
• Allows fan to operate in full speed mode or humidity control mode by manual switch
• For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed (100 CFM). When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0 or 60 CFM)
• Built-in soft start function to increase bearings’ life
• Automatically powers OFF when impeller is locked abnormally
• Permanently lubricated motor
• Self-compensating motor speed for intended Airflow when static pressure is encountered

Housing
• Galvanized steel body
• Detachable 4” Round duct adapter
• Built-in backdraft damper
• Hanger bars included
• Easy installation

Grille
• Attractive design using ABS material
• Attaches directly to housing with torsion springs

LED Indicator
• Blue and amber LED indicator lights to show humidity sensor and full speed modes
• 3-year limited warranty
