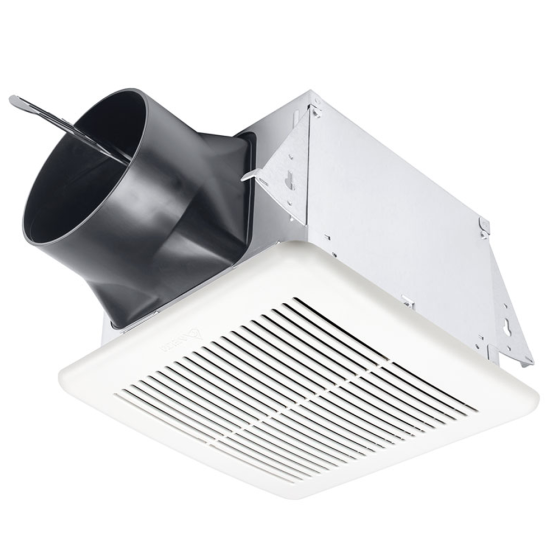

Delta BreezElite ENERGY STAR® Certified Ventilation Fan 4 in. or 6 in. Round Duct, 80 to 110CFM, 0.7 Sones, 120Vac (Multi-Speed)

APPLICATIONS

The BreezElite ELT80-110 ENERGY STAR® Certified Ventilation Fan is the perfect fit for room side installation, featuring installer-friendly pocket mounting brackets and adjustable high-speed options for an affordable price. BreezElite ELT80-110 is an Ventilation Fan rated for 80 or 110 CFM, which offers quiet energy efficient operation. It is not just ENERGY STAR rated, it exceeds Energy Star Most Efficient requirements. Energy Star Most Efficient recognizes the top ENERGY STAR labeled products.

FEATURES & BENEFITS

• Airflow Options (CFM): 59 (.25 SP), 80 (0.1 SP), 90 (0.25 SP), 110 (0.1 SP)
• Sones: 0.9 @ 59CFM, 0.5 @ 80CFM, 1.0 @ 90CFM, 0.7 @ 110CFM
• Power Consumption (Watts): 9.0 @ 59CFM, 7.0 @ 80CFM, 13.0 @ 90CFM, 10.3 @ 110CFM
• Energy Efficiency (CFM/Watts): 6.5 @ 59CFM, 11.4 @ 80CFM, 6.9 @ 90CFM, 10.6 @ 110CFM
• Current (Amps): 0.27 Max
• Power Rating (Vac/Hz): 120/60

DC Motor/Blower
• Power Rating of 120 volts/60Hz
• Motor equipped with thermal cutoff fuse
• Removable with permanently lubricated plug-in motor
• Full speed adjustable, 80 or 110 CFM
• Built-in soft start function to increase bearings’ life
• Automatically powers OFF when impeller is locked abnormally

Housing
• Galvanized steel body
• Detachable 6” Round duct adapter
• Includes 6” to 4” duct reducer
• Built-in backdraft damper
• Easy installation with expandable extension bracket and foldable mounting bracket

Grille
• Attractive design using ABS material
• Attaches directly to housing with torsion springs LED Indicator
• Turn the power switch on/off to operate on/off, LED indicator will be green when power is on
• Warranty: 3-Year limited warranty
