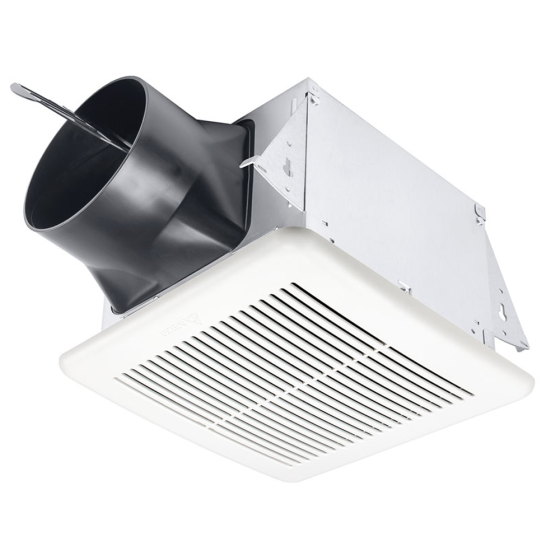

The Delta BreezElite ELT80-110H, an ENERGY STAR® qualified fan with a humidity sensor, is ideal for room-side installation. It features installer-friendly pocket mounting brackets, adjustable high-speed options, quiet and energy-efficient operation rated at 80 or 110 CFM, and exceeds Energy Star Most Efficient standards.
• ENERGY STAR® qualified with innovative brushless DC motor technology
• Perfectly quiet operation at 0.5 sones (80 CFM) and 0.7 sones (110 CFM) with a 6-inch duct
• Adjustable high speed 80 CFM or 110 CFM
• Allows fan to operate in full speed mode or humidity control mode by manual switch
• For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed. When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0, 50 or 80 CFM)
• Adjustable humidity set points between ~50% to ~80% RH
• Includes 6" to 4" duct reducer
• Energy efficiency at 10.6 CFM/Watt
• Blue and amber LED indicator lights to show humidity sensor and full speed modes
SPECIFICATIONS
DC Motor/Blower
• Power rating of 120 volts/60Hz
• Motor equipped with thermal cutoff fuse
• Removable with permanently lubricated plug-in motor
• Full speed adjustable, 80 or 110 CFM
• For humidity control mode, when humidity is above the user adjustable set-point, fan runs at full speed. When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0, 50 or 80 CFM)
• Adjustable humidity set points between ~50% to ~80% RH
• Built-in soft start function increases bearing life
• Automatically powers OFF if impeller is locked abnormally
Housing
• Galvanized steel body
• Detachable 6” diameter metal duct adapter
• Includes 6” to 4” duct reducer
• Built-in backdraft damper
• Easy installation with expandable extension bracket and foldable mounting bracket
Grille
• Attractive design using ABS material
• Attaches directly to housing with torsion springs
LED Indicator
• The blue and amber LED indicator lights indicate the humidity sensor and full-speed modes are active
