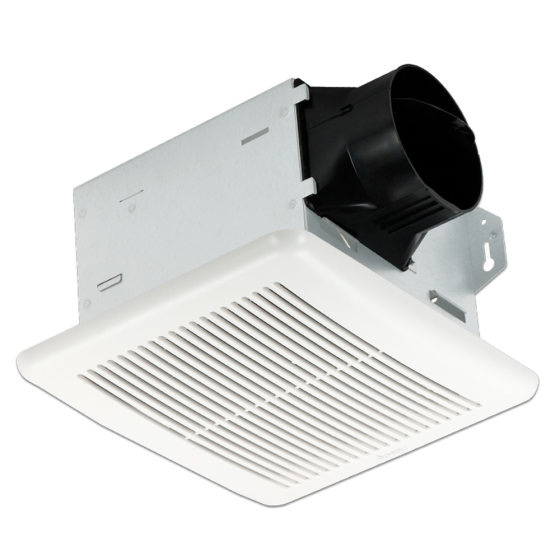

The Delta BreezIntegrity ITG80-B ENERGY STAR® Certified Motor/Blade/Grille Assembly is used with the Delta BreezIntegrity ITG-A Housing
FEATURES & BENEFITS
• ENERGY STAR® Certified with DC Motor technology • Quiet operation at 1.3 Sones • ITG80 is UL listed for both ceiling and wall-mount installation • Compact housing for easy retrofit and replacement of older bath fans • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring. • Energy efficiency at 8.4 CFM/Watt • Airflow (CFM @ 0.1 SP): 80 • Sones: 1.3 • Power Consumption (Watts): 10 • Energy Efficiency (CFM/Watts): 8.4 • Current (Amps): 0.20 Max • Power Rating (Vac/Hz): 120Vac/60
• DC Motor/Blower • DC brushless motor engineered to run continuously • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug-in motor • Built-in soft start function to increase bearings’ life • Automatically powers off when impeller is locked abnormally
• Grille • Attractive design using ABS material • Attaches directly to housing with torsion springs
