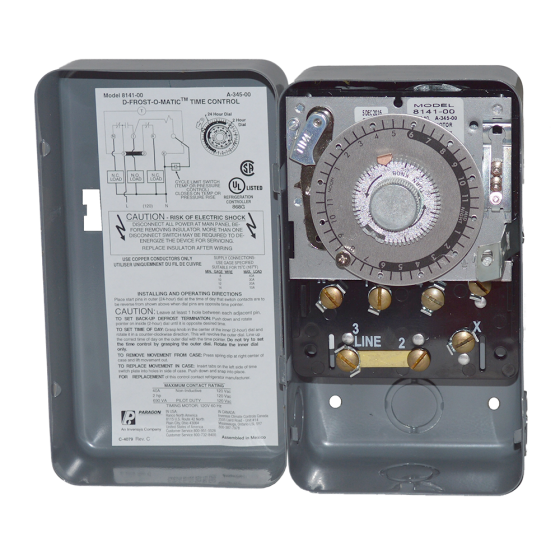

Defrost Timer

FEATURES

• Time initiated; temperature, pressure or time terminated models available
• High-amp switch contacts: 40 amps, 2 HP
• Positive slider bar switch design assures positive electrical contact and wipes the contact surface of contaminates
• Temperature or pressure terminated models are designed for defrost termination using an external temperature or pressure device
• Safety back-up - mechanical time-driven defrost termination
• Heavy-duty synchronous design drive motor
• Choice of three contact arrangements
• Adjustable frequency of defrost initiation from 1 to 6 cycles per day with a minimum of 4 hours between successive operations
• Adjustable back-up defrost termination from 4 to 110 minutes in 2 minute increments
• Heavy-duty steel enclosure with knockouts (on the bottom, back and sides) and hasp and staple padlock
• All 8240 models have an adjustable cut-in pressure dial calibrated from 36-110 pounds for R12, R22, R506
