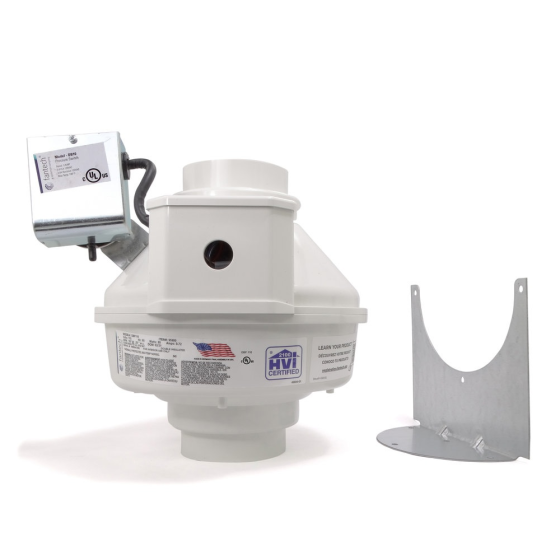

Fantech® Inline Duct Fan 4 in. Round Duct, 160CFM, 120Vac

Item
DBF110
  • California Prop 65

APPLICATIONS

The Fantech® DBF110 Inline Duct Fan is designed for boosting air on demand in applications such as extended ductwork, crawlspace ventilation, and dryer exhaust. The product is equipped with a pressure-sensing switch that activates the fan once positive pressure is sensed in the duct line. The switch shuts the fan off when the pressure differential falls below the activation level.

FEATURES & BENEFITS

• Suitable for 4” ductwork
• Plastic leak-proof housing
• Pressure switch
• Duct runs up to 108 linear feet
• Voltage (nominal): 120Vac
• Frequency: 60Hz
• Phases: 1
• Input power: 66W
• Input current: 0.72A
• Impeller speed: 2,143RPM
• Rated Airflow (@ 0.2 SP): 160
• Maximum Airflow: 188CFM
• Temperature of transported air (Max): 140° F
• Enclosure class, motor: IP44
• Insulation class: B
• Duct dimension; Circular, inlet: 4 in.
• Duct dimension; Circular, outlet: 4 in.
• Weight: 9lbs
• Duct connection type: Round
• Motor type: AC
• Material: Plastic

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 9
Exterior Dimensions (D) (inches) 13.000000
Exterior Dimensions (W) (inches) 13.000000
Exterior Dimensions (H) (inches) 15.000000
Shipping Weight (lbs) 12.000000
Specification
CFM 160
