QuietR® FRK Duct Board 1 in. x 48 in. x 10 ft.

Item
DB-4X10X1-475
  • California Prop 65

APPLICATIONS

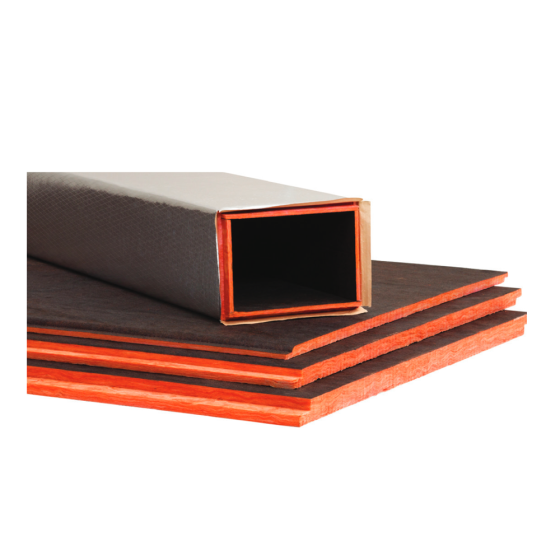

Owens Corning® QuietR® Duct Board is a rigid, resin bonded fibrous glass board with a tough, damage-resistant, flame retardant, reinforced aluminum foil (FRK) facing; with a durable mat air stream surface.

FEATURES & BENEFITS

• Absorbs noise and reduces popping noises caused by expansion, contraction and vibration
• Assured thermal R-value performance
• Bacterial and fungal growth resistant with an EPA registered biocide that helps protect the air stream surface from microbial growth
• Thermal/acoustical insulation board plus jacket forms a single component duct system, thus reducing inspection time
• Lightweight boards are easier to transport and handle than insulated sheet metal ducts
• Virtually eliminates air leakage thus saving energy* and removing the need for system overdesign
• Meets UL 181 Class 1 Air Ducts
• Meets NFPA 90A/90B
• Meets ICC International Mechanical Code, Corps of Engineers Guide Spec.
• Supported by NAIMA and SMACNA industry standards
• Meets requirements of UL 181 and ASTM C 1338 (mold growth), ASTM G 21 (fungi test) and ASTM G 22 (bacteria test)
• Maximum Operating Temperature Limits: UL 181/ULC S110 Internal: 265°F (129.4°C)
• External: 150°F (66°C)
• Maximum Air Velocity: UL 181/ULC S110
• Erosion Test: 6,000 fpm (30.5 m/s)
• Static Pressure Limit: UL 181/ULC S110 ±2 in. w.g. (500 Pa)
• Water Vapor Sorption: ASTM C1104 3% at 120°F (49°C), 95% R.H.
• Mold Growth: UL 181/ULC S110 Meets requirements
• Fungi Resistance: ASTM G21 Meets requirements
• Bacteria Resistance: ASTM G22 Meets requirements
• Flame Spread: 25
• Smoke Developed: 50
• Fire Retardancy: Flame Penetration 30 min.

Specification
Thickness 1 in.
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 1.000000
Exterior Dimensions (W) (inches) 120.000000
Exterior Dimensions (H) (inches) 48.000000
Shipping Weight (lbs) 8.000000
