The TR6 series is a hermetic design which is developed with features especially for use in applications such as:
• Residential air conditioning systems
• Split systems
• Roof top units
• Heat pumps
• Chillers
• Light commercial air conditioning systems

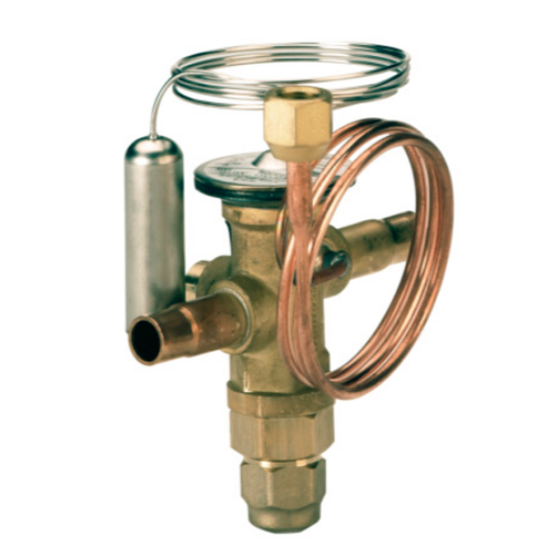

The TR6 design incorporates a forged brass body with the entire power element, including the capillary tube and bulb, fabricated from stainless steel. All valves are designed with balanced port which reduces the influence from varying condensing pressures. The valves can be delivered with special connections and fittings both at the inlet, outlet, and the equalizer connection.
SPECIFICATIONS
• Adjustable: Yes
• Approval: c UL us
• Body material: Brass
• Capillary tube length [in]: 31.5 in
• Capillary tube length [mm]: 800 mm
• Check valve: Yes
• Direction: Straightway
• Equal. Capillary tube lgt. [in]: 24.3 in
• Equalization connection type: Cap. tube, flare
• Equalization size [in]: 1/4 in
• Inlet connection type: Solder, ODF
• Inlet size [in]: 3/8 in
• Material Description: TR6 Valve L Orf2 Adj M/12
• Max. Working Pressure [bar]: 49.0 bar
• Max. Working Pressure [psig]: 711 psig
• MOP Point [psig]: LAH
• Orifice capacities [kW]: 10.50 kW
• Orifice capacities [TR]: 3.00 TR
• Orifice size: 2
• Outlet connection type: Solder, ODF
• Outlet size [in]: 3/8 in
• Port design: Balance port
• Product Type: TR 6
• Rated capacity R32 [kW]: 14.00 kW
• Rated capacity R32 [TR]: 4.00 TR
• Rated capacity R410A [kW]: 7.70 kW
• Rated capacity R410A [TR]: 2.20 TR
• REACH Candidate List substances: Lead (CAS no. 7439-92-1)
