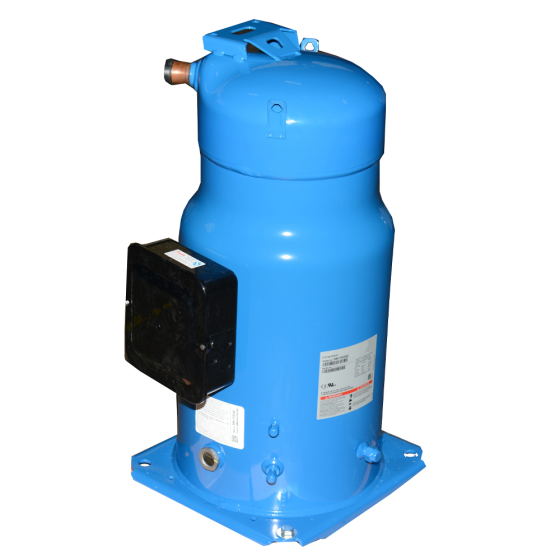

Totaline® Hermetic Scroll Compressor R22, 174,355BTU, 208/230Vac, Three Phase
Item
SM175-3QAI
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 174,435
• Refrigerant: R22
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 53.6 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 161 to 200kBTU | Suction Line Height | 7.1" | Discharge Line Height | 25.3" | Discharge Line Size | 1-1/8" | Compressor Type | Scroll | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 16 | Exterior Dimensions (D) (inches) | 20.000000 | Exterior Dimensions (W) (inches) | 248.000000 | Exterior Dimensions (H) (inches) | 36.000000 | Shipping Weight (lbs) | 16.000000 |
