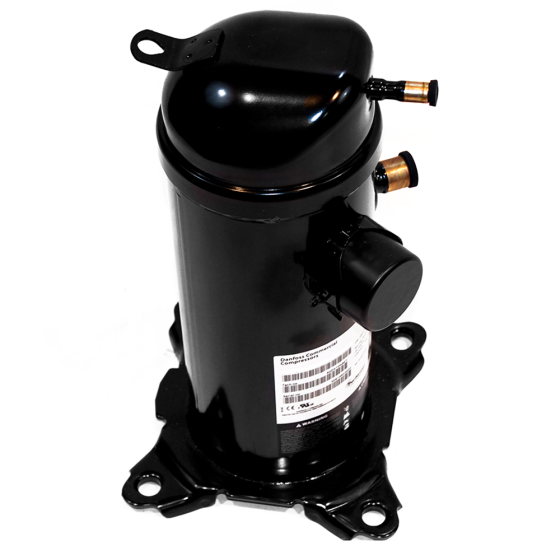

Danfoss Hermetic Scroll Compressor R410A, 29,000BTU, 208/230Vac, Single Phase
Item
HRH029U1LP6
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 29,000
• Refrigerant: R410A
• Connection Type: Spade Terminals
• Oil: PVE (Polyvinyl)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 45/370µF
• Hertz: 60
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 17 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 26 to 30kBTU | Oil | PVE (Polyvinylether) | Suction Line Height | 9.8" | Discharge Line Height | 14.9" | Discharge Line Size | 1/2" | Compressor Type | Scroll | Refrigerant | R-410A |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 10.9 | Exterior Dimensions (D) (inches) | 11.000000 | Exterior Dimensions (W) (inches) | 70.050000 | Exterior Dimensions (H) (inches) | 18.800000 | Shipping Weight (lbs) | 10.900000 |
