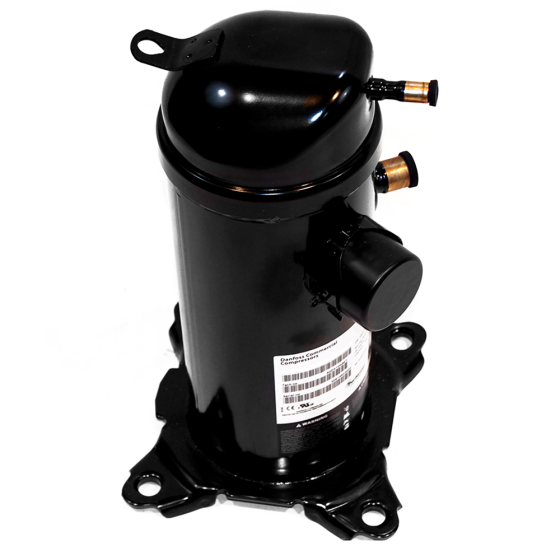

Danfoss Hermetic Scroll Compressor R407C, 42,000BTU, 460Vac, Three Phase
Item
HRP042T4LP6
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
Electrical | |
---|---|
Hertz | 60 | LRA | 45 | Phase | 3 | RLA | 6.4 | Voltage | 460 |
Specification | |
---|---|
BTU Rating | 41 to 45kBTU | Oil | PVE (Polyvinylether) | Suction Line Height | 9.8" | Discharge Line Height | 14.9" | Discharge Line Size | 1/2" | Compressor Type | Scroll | Refrigerant | R407C |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 10.5 | Exterior Dimensions (D) (inches) | 10.500000 | Exterior Dimensions (W) (inches) | 70.000000 | Exterior Dimensions (H) (inches) | 19.000000 | Shipping Weight (lbs) | 10.500000 |
