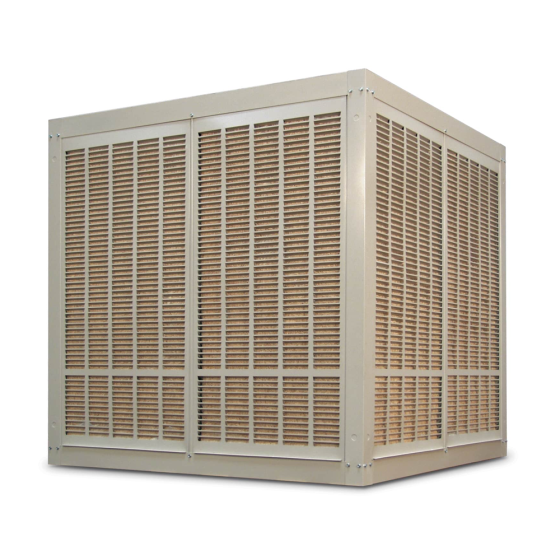

Frigiking® Commercial Evaporative Cooler with Aspen Pads, Down-Discharge, up to 12,511 CFM

Item
D1425-A
  • California Prop 65

APPLICATIONS

This Commercial Cooler delivers the industry optimum fresh air with motor horsepower ranges from 1 Hp to 3 Hp to meet the most challenging design requirements. Often referred to as an air washer, this unit also provides filtering to induction air prior to entering workplace environments through ducts or single inlet discharge aperture. Similarly, used as an air handler without the use of water, fresh make-up air requirements in restaurant kitchens, industrial work environments and dry cleaning industries can be met cost effectively and energy efficiently.

Our Commercial Coolers line is constructed of hot dipped galvanized steel and treated with our 5-stage, durable Peblar XT appliance type finishing process. Using plane separation technology, our computerized dynamic wheel balancer provides the smoothest running vibration-free wheel possible. Engineered and designed for reliable performance and long life, these commercial units will last through the years with minimum maintenance and optimum cooling capacity.

FEATURES & BENEFITS

• Dynamically balanced blower wheels.
• Each cooler comes with belt included.
• Models all require 1 pumps.
• Knockout for electrical service is 7/8”.
• Bottom pan drain is 3/4” male hose thread
• Solid Shaft for strength & durability.
• High quality architectural grade Peblar XT® finish
• Galvanized sheet steel is zinc coated at weight rated G40 or G90
• Multi-layer bottom pan finish
• Up to 12,511 CFM capacity
Motor, motor sheave, pump & float ordered separately.
• Bearings have an L10 bearing life of 39,600 hours

Specification
Discharge Orientation Down-Discharge
Maximum CFM 12,511
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 415
Exterior Dimensions (D) (inches) 52.000000
Exterior Dimensions (W) (inches) 52.000000
Exterior Dimensions (H) (inches) 52.000000
Shipping Weight (lbs) 415.000000
