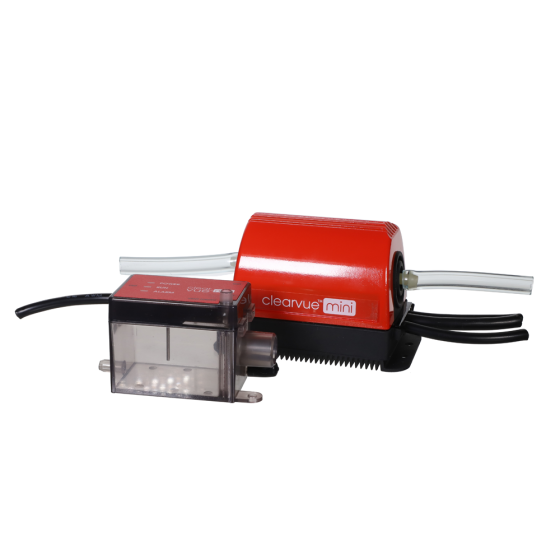

DiversiTech® ClearVue™ Mini Condensate Pump 8GPH, 120/230Vac

APPLICATIONS

The Asurity™ Clearvue™ Mini-Split Condensate Pump is designed to automatically pump condensate produced by ductless (mini-split) systems. It provides head lift up to 35’ (10m) once the level of condensate in the tank reaches a specified level.

Asurity™ Clearvue™ Mini-Split Condensate Pump is specifically designed for mini-split systems, is super quiet and compact. Flexible installation options, Floatless Sensor and Variable Speed and Lift technology provides great performance in a small package.

FEATURES & BENEFITS

• The Variable Speed and Lift in ClearVue™ Mini assures that the pump is running only as fast as is needed to lift the condensate water to the height needed.
• The Floatless Sensor™ eliminates many of the mechanical problems associated with conventional condensate pumps.
• 5A Safety Switch at 230Vac
• Temperature Rating: Continuous Duty 140° F
• Rated Voltage: 120/230Vac
• 50/60 Hertz
• Rated Current Draw: 1.0A
• Input Type: 3 Conductor Jacketed Flexible PVC
• Maximum Lift Height: Variable between 0 to 35 feet
• Flow Rate @ Zero Head: 8 Gallons per Hour
• Maximum Rated Inlet Flow Rate: 3.38 fl oz (100 mL) per minute
• Inlet Height from Base: 0.5” (1.3 cm)
• Suction Lift: 2m/6.5’ (performs best at 3’, must be primed to provide maximum suction lift)
• Wiring Color References:
120Vac:
Brown – Live/Hot
Blue – Neutral
Green/Yellow – Ground
230Vac
Brown – Live/Hot
Blue – Live/Hot
Green/Yellow – Ground
• Decibel Ratings:
35mL/min – 19 dB
250 mL/min – 24 dB
500 mL/min – 28 dB

INCLUDES

• Instructions
• Wire Ties
• 8” large flexible tubing
• 6” small 3/16” I.D. flexible vent tubing
• 6’ small 3/16” I.D. flexible drain tubing
• 6’ AC power cable
• Safety Switch Cable
• Sensor Cable
