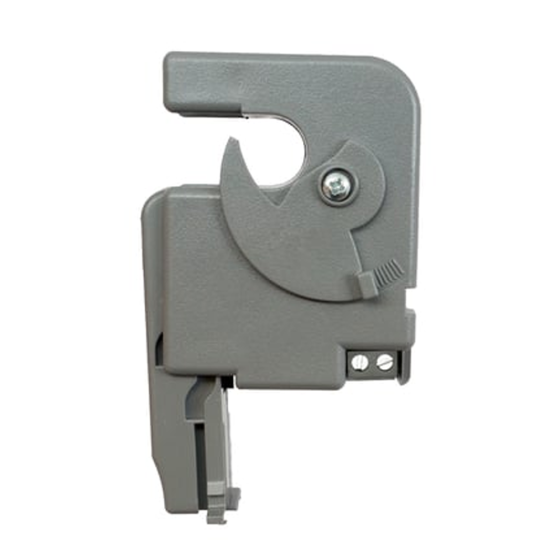

Enclosed Adjustable Split Core AC Sensor, .25-150A, Solid State SPST

FEATURES

The RIBXGTA-ECM Current Switch is highly adaptable and offers unmatched precision during current monitoring. Our split-core, adjustable switch is designed to accommodate a range of currents from as low as 0.25 to 150 Amps. We also designed the RIBXGTA-ECM component to streamline your installation process, enhancing its versatility.

Terminal
Offers a straightforward wiring process that saves time and reduces the likelihood of errors.

0.25 to 150 Amp Range
Capable of monitoring many different currents, which adds to the system’s versatility.

Split-Core Design
Simplifies installation around existing conductors.

SPECIFICATIONS

• Operating Temperature: -30 to 140° F
• Humidity Range: 5 to 95% (noncondensing)
• Max Sense Voltage: 600 Vac
• Mounting/Installation: Removable mounting tab provided. The wire clamp locks against the wire being monitored, securing the unit in place.
• Sensor Contact Status
• Current below threshold: Open
• Current above threshold: Closed
• Origin: Made of US and non-US parts
• Approvals: UL Listed, C-UL, CE, RoHS, UL916

Sensor Contact
• Solid State Contact
• When sensor contact is off (open), leakage: <30 uA @ 30Vac/dc
• When sensor contact is on (closed), voltage drop:
< .3 Vac/dc @ .1 Amp
< 1.6 Vac/dc @ .4 Amp

Sensing Range: .25-150 Amp
• Type: Split Core
• Threshold: Adjustable
• Sensor Contact Type: Solid State Switch SPST
• Switching Voltage Range: 30 Vac/dc
• Max Switching Current: .4 Amps Max
• Sensor Contact Termination: Terminal Strip, Accepts #14-22 AWG Wire
• LED 1: Over Trip Point
• LED 2: Load Current Detected
