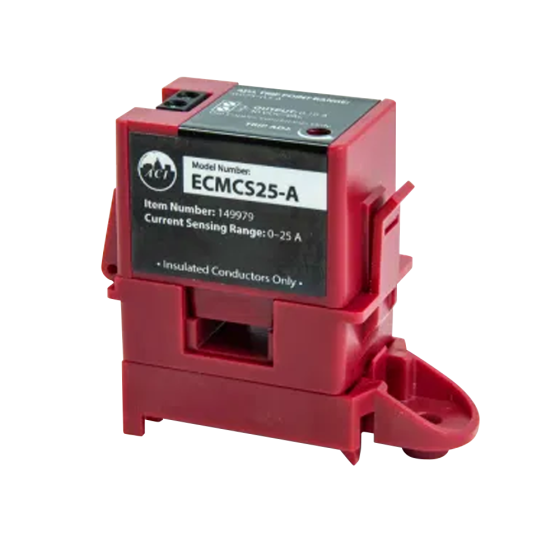

Current Switch Adj Sensing Range 0-25A, Trip Range 0.075-0.5A (No LED)

FEATURES

ECM split-core current switches are designed for use in electronically commutated motor (ECM) applications in which you are looking for status for a particular piece of equipment. ECMs have a unique operating profile that includes a small standby current when the motor is powered but not actively spinning compared to no current draw of traditional PSC motors.

The ECMCS switches do not require external power, since the power for the current switch is induced from the conductor being monitored. The ECMCS switch has an adjustable trip level to set the desired trip level for proper motor status indication in most ECM applications. We offer a calibration tool that will help assist the installation process by implementing a visual indication of the state of the output switch to the installer.

The ECM current switch can be secured to the monitored cable using a cable tie and the integrated cable tie anchor feature of the housing. The ECMCS switch also comes with an attachable mounting foot that allows the unit to be mounted in any position using one Tek screw or snapped directly on a 35mm DIN rail.

Note: The ECM switch is not intended to monitor status in VFD motor applications.

• Applications
Pump Status
Fan Status
Compressors
Air Handlers
Residential Furnaces
Motor Status

• The ECMCS are covered by a Five (5) Year Limited Warranty.

SPECIFICATIONS

• Monitored Current Type: AC Current
• Maximum AC Voltage: 600 VAC
• Operating Frequency Range: 50/60 Hz
• Core Style: Split-Core
• Sensor Power: Induced from the Monitored Conductor (Use Insulated Conductors only)
• Amperage Range: 0 to 25 A
• Insulation Class: 600 VAC
• Trip Point Style: Adjustable Trip Point
• Adjustable Trip Point Range: 0.075 A to 0.50 A
• Hysteresis: 10% of Trip Level Current, Typical
• Contact Type: Normally-Open “N/O”
• Contact Rating: 100 mA Continuous @ 30 VAC/VDC
• Contact “On” Resistance | “Off”
• Resistance: < 10 Ohms (when tripped) | > 1 Meg Ohms (Open)
• Response Time: < 5 Seconds Typical
• Aperture Size (Diameter) | Wire Size: 0.20”(5.0mm) x 0.49”(12.5mm) | Fits 10 AWG to 14 AWG THHN Insulated Wire
• DIN Rail Size: 35 mm
• Operating Temperature Range: 32°F to 140°F (0°C to 60°C)
• Operating Humidity Range: 10 to 90%, non-condensing
• Recommended Storage Temperature | RH Range: -40 to 158°F (-40 to 70°C) | 10% to 90% RH, non-condensing
• Enclosure Material: PC/ABS (Polycarbonate/ABS Blend)
• Flammability Rating: UL94-V0
• Wiring Connections: 2 Position Screw Terminal Block (Not Polarity Sensitive)
• Wire Size: 16 to 22 AWG (1.31 mm2 to 0.33 mm2) Copper Wires Only
• Terminal Block Torque Rating: 4.43 to 5.31 in-lbs. (0.5 to 0.6 Nm)
• Minimum Mounting Distance: 1” (2.6 cm) between current switch & other magnetic devices (Relays, Contactors,
• Transformers)
• Agency Approvals: UL/CUL US Listed (UL 916) Energy Management Equipment (File # E334792), CE,
• UKCA, RoHS, WEEE, CAN ICES-3 / NMB-3
• Product Weight: 0.14 lbs. (0.065 kg)
• Product Dimensions (L x W x H): 1.93" (48.99 mm) x 1.31" (33.17 mm) x 2.18" (55.37 mm)
