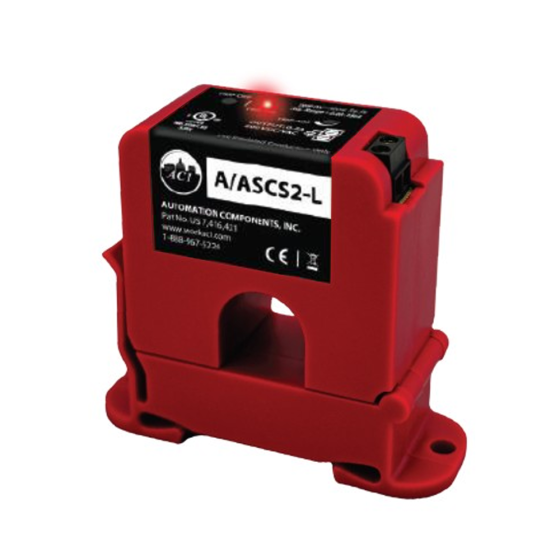

Current Switch Adj 0.65-180A (Long Lead Times - Reach Out Before Ordering)

APPLICATIONS

The Adjustable Current Switch is designed for use in any AC current monitoring application in which you are looking to monitor a particular piece of equipment for equipment failure, preventative maintenance, status, and electrical load status. The current switch should be installed on the line side of the power to the electrical equipment. The current switch includes a Patented 35 mm Din Rail mounting foot for easy installation in panel mount applications. The split-core works great in retro applications and for use on service technicians’ vehicles since one part will work in most applications and can be easily installed without disconnecting any wires. The adjustable current switch can be used to determine the run time of your equipment as well as basic load trending applications where you want to know when how long your piece of equipment runs when logging the contact closures on your building management system or PLC.

FEATURES & BENEFITS

• Monitored Current Type: AC Current
• Maximum AC Voltage: 600 VAC
• Operating Frequency Range: 40 to 1 kHz
• Core Style: NSA-A/ACS2: Solid | NSA-A/ASCS2: Split | NSA-A/ASCS2-L: Split
• Sensor Power: Induced from the Monitored Conductor
• Amperage Range: 0 to 250A
• Isolation Voltage: 2200 VAC
• Trip Point Style | Trip Point: Adjustable
• NSA-A/ACS2: 0.5 to 220A | NSA-A/ASCS2: 1.5 to 220A
• NSA-A/ASCS2-L: 0.6 to 180A
• Hysteresis: 10% of trip point, typical
• Contact Type: Normally Open (N/O)
• “Status” Contact Rating: 0.2A @ 200 VAC/VDC
• “Status” Contact “On” Resistance | “O” Resistance: < 10 Ohms (tripped) | > 1 Meg Ohms (Open)
• Response Time: See Response Time Table
• Status LED Indication -: Red LED (Current above Trip Point)
• Blue LED (Current Below Trip Point)
• Aperture Size: 0.75” (19.05 mm)
• Din Rail Size: 35 mm (U.S. Patent No. 7,416,421)
• Operating Temperature Range: 5 to 104ºF (-15 to 40ºC)
• Operating Humidity Range: 0 to 95%, non-condensing
• Recommended Storage Temperature | RH Range: 41 to 95°F (5 to 35°C) | 40% to 85% RH, non-condensing
• Enclosure Material | Flammability Rating: PC/ABS (Polycarbonate/ABS Blend) | UL94-V0
• Wiring Connections: 2 Position, Screw Terminal Block (Not Polarity Sensitive)
• Wire Size: 16 to 22 AWG (1.31 mm2 to 0.33 mm2) Copper Wires only
• Terminal Block Torque Rating: 4.43 to 5.31 in-lbs. (0.5 to 0.6 Nm)
• Minimum Mounting Distance: 1” (2.6 cm minimum) between current switch (Relays, Contactors,
• Transformers)
• Agency Approvals: UL/CUL US Listed (UL 508) Ind. Control Equipment (File # E309723), CE,
• RoHS2, WEEE
• Product Weight: NSA-A/ACS2: 0.216 lbs. (0.097 kg) | NSA-A/ASCS2: 0.270 lbs. (0.123 kg)
• NSA-A/ASCS2-L: 0.280 lbs. (0.127 kg)
• Product Dimensions (L x W x H): 2.780” (70.51 mm) x 3.238” (82.25 mm) x 1.120” (28.45 mm)
