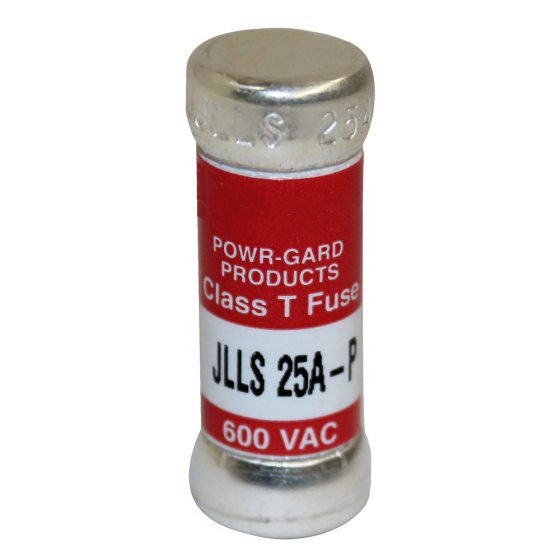

main product photo

Current Limiting Fast Acting Fuse 25a, 600Vac (Class T)

Item
JLLS025
  • California Prop 65

FEATURES

  • • Current Rating (Continuous) in Amps: 25
  • • Interrupting Rating: 20 kA @ 300 Vdc
  • • Opening: Fast-Acting (F)
  • • Maximum AC Voltage (V): 600
  • • Voltage Rating (V): 300
  • • Size: Industrial Cartridge
  • • Family style: Current Limiting
  • • Fuse Class: Class T
  • • Indicating: No
  • • Interrupt Amperage 1: 200000
  • • interrupt Amperage (A) - 2: 20000
  • • Interrupt Voltage Type ACDC - 1: AC
  • • Interrupt Voltage Type ACDC - 2: DC
  • • interrupt Voltage (V) -1: 600
  • • interrupt Voltage (V) -2: 300
  • • Mounting Method: Fuse Block / Clip / Holder
    • Specifications
    Safety Standards
    California Prop 65 Yes
    Specification
    Amp Rating 25
    Weights and Dimensions
    Operating Weight (lbs) .1
    Exterior Dimensions (D) (inches) 2.000000
    Exterior Dimensions (W) (inches) 1.000000
    Exterior Dimensions (H) (inches) 1.000000
    Shipping Weight (lbs) 0.100000
