Carrier® Thru-the-Curb Gas/Electric Connection for Small Rooftop Units

FEATURES

Thru-the-bottom, power connection accessory packages reduce the number of penetrations in the roof. They provide a watertight way to connect power wiring, control wiring, 115-v service power, and the gas supply line through the base of the unit in the condenser section. Kit is used on the 3 to 6 ton units.

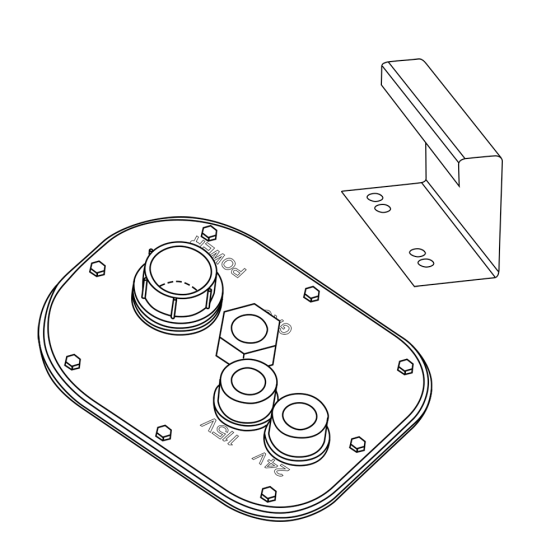

When the thru-the-bottom power accessory package is purchased, one of two bulkhead connector configurations may be selected for power connections. Each set contains 2 bulkhead connector sizes (1/2 in. and 3/4 in.). Set #1 uses the (3) hole cover plate and enables the low-voltage control wires (using one 1/2 in. bulkhead connector), the high-voltage power wires (using one 3/4 in. bulkhead connector), and the gas line to pass through the basepan. Set #2 uses the (4) hole cover plate and enables the low-voltage control wires, the high-voltage power wires, the gas line, and the 115 v service power (using one 1/2 in. bulkhead connector) to pass through the basepan. Refer to Table 1 for package contents.

INCLUDES
