Carrier® Thru-the-Curb Gas/Electric Connection for Small Rooftop Units
Item
CRBTMPWR008A00
FEATURES
The thru-the-bottom power connection accessory package reduces the number of penetrations in the roof. It provides the capability to draw power and control wiring through the basepan and field supplied gas piping connections through the roof curb.

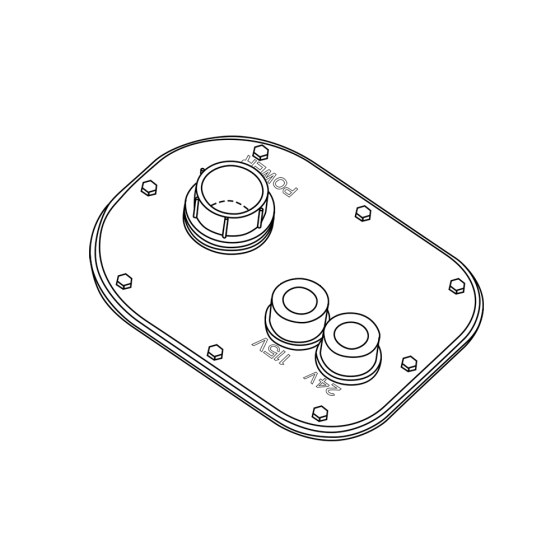

Each accessory contains 3 bulkhead connectors. Two 1/2 in. diameter bulkhead connectors: one for the 24-v low voltage control wires and one for 115-v wiring required when the unit is equipped with the optional non-unit powered convenience outlet. The 2 larger bulkhead connectors allow the high-voltage power wires and optional powered convenience outlet wires to pass through the basepan.
INCLUDES
• 2 1/2 in. Coupling• 1 3/4 in. Coupling
• 3 Screws (#10 x 5/8 in.)
• 1 Gas Plate Assembly
• 1 Cover
• 1 Cover
• 1 Gasket
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 9.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 5.000000 |
