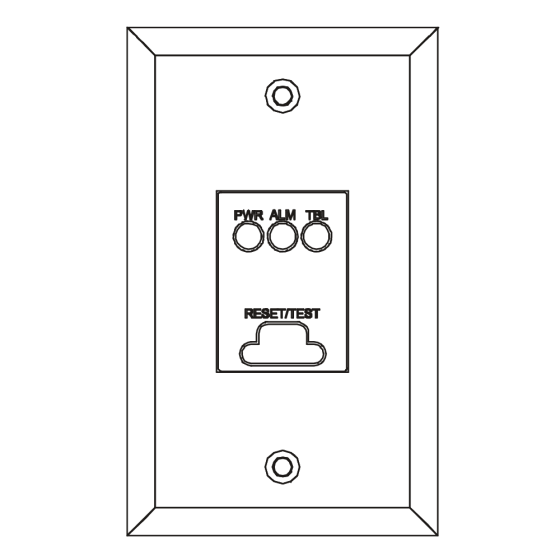

Carrier® Remote Test/Reset Station SD-TRM4

Item

CRSDTEST001A00

FEATURES

The SD--TRM4 Remote Test/Reset Station is used with the SuperDuct™ four-wire duct smoke detector. Each remote test/reset station provides a green LED to indicate power, a red LED to indicate alarms, and a yellow LED to indicate trouble and detector dirty levels. The SD--TRM4 requires a magnetic to activate test and reset functions.

SPECIFICATIONS

• Compatible Electrical Boxes: North American 1-gang box, Standard 4-in square box, 1-1/2-in deep with 1-gang cover

• LED Indicators: Alarm (red), Trouble (yellow), Power (green)

• LED Type: Clear lens

• Wire Size: 14 to 22 AWG

• Resistance Per Wire: 10Ω, max

• Current Requirements: Included in controller specification

• Compatible Detectors: SuperDuct™ Four-Wire Smoke Detectors

• Operating Environment Temperature 32-131 °F (0-55 °C), Humidity 93% RH, non-condensing

• Storage Temperature: -20 to 60 °C (-4 to 140 °F)

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	0.17
Exterior Dimensions (D) (inches)	2.000000
Exterior Dimensions (W) (inches)	3.000000
Exterior Dimensions (H) (inches)	5.000000
Shipping Weight (lbs)	0.250000

Resources

CRSDTEST001A00.pdf
