Carrier® Power Exhaust Accessory 460Vac, Three Phase
Item
CRPWREXH069A00
FEATURES
The power exhaust accessory is for use in both vertical and horizontal return air duct applications.
Confirm that the power exhaust package part number on the crate matches the unit size and voltage of the unit.
Consult product literature for the economizer accessory if the unit is not already equipped.

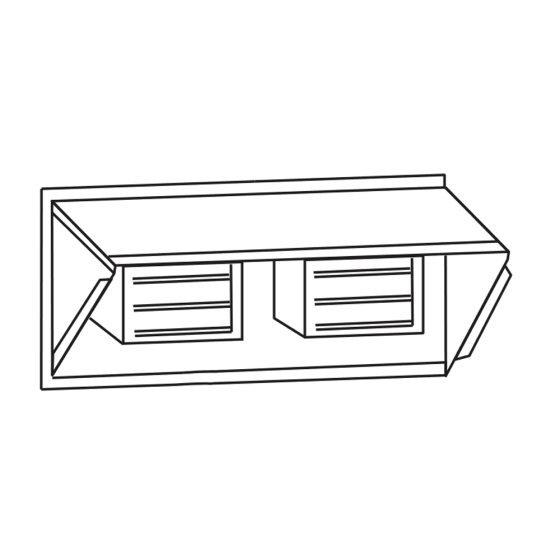

The power exhaust hood assembly has 2 power exhaust blowers. Return block-off panels, support bracket, screws, relay and wiring harness are also included in the package.
INCLUDES
• 1 Power Exhaust Fan Assembly 50HE400973• 1 Right Block– Off Panel 50HE400965
• 1 Left Block–off Panel 50HE400966
• 1 Support Bracket 50HE500728
• 1 Harness Assembly 50HEHMRAX—A00
• 1 Harness Assembly 50HE401639
• 1 Power Exhaust Relay HN61PC005
• 8 Screw (AL31AZ219) #10 x 7/8 in. Gasket Head
• 7 Screw (AL48AM217) #10 x 5/8 in. Serrated Head
• 125 Screw (AL31AZ308) 1/4 -14 x 3/4 in.
• 2 Screw (AL56AU166) 8-18 x 1/2 in. Pan Head
• 8 Wire Tie HY76TB110
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 253 | Exterior Dimensions (D) (inches) | 56.000000 | Exterior Dimensions (W) (inches) | 38.000000 | Exterior Dimensions (H) (inches) | 29.000000 | Shipping Weight (lbs) | 285.000000 |
