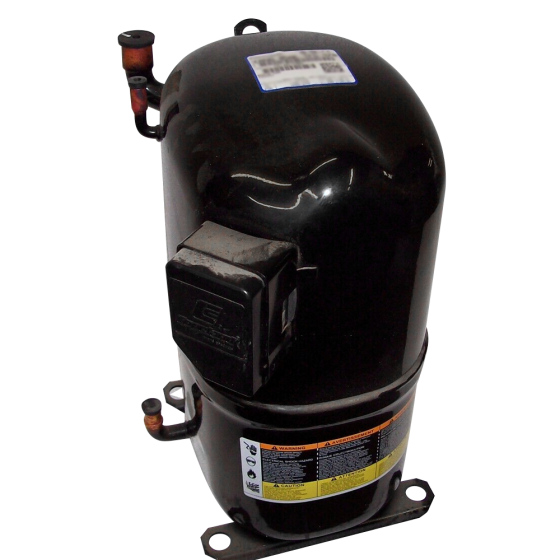

Copeland Hermetic Reciprocating Compressor R22, 61,500BTU, 208/230Vac, Three Phase
Item
CRNQ-050E-TF5-970
FEATURES & BENEFITS
• Compressor Type: Reciprocating• BTU Rating: 61,500
• Refrigerant: R22
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 30
• LRA: 130
• RLA: 21.4
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 15.29"
• Discharge Line Size: 1/2"
• Discharge Line Height: 2.78"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 21.4 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 61 to 65kBTU | Oil | POE (Polyester) | Suction Line Height | 15.29" | Discharge Line Height | 2.78" | Discharge Line Size | 1/2" | BTU Output | 62000 | Compressor Type | Reciprocating | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 87 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 15.000000 | Exterior Dimensions (H) (inches) | 19.000000 | Shipping Weight (lbs) | 98.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
