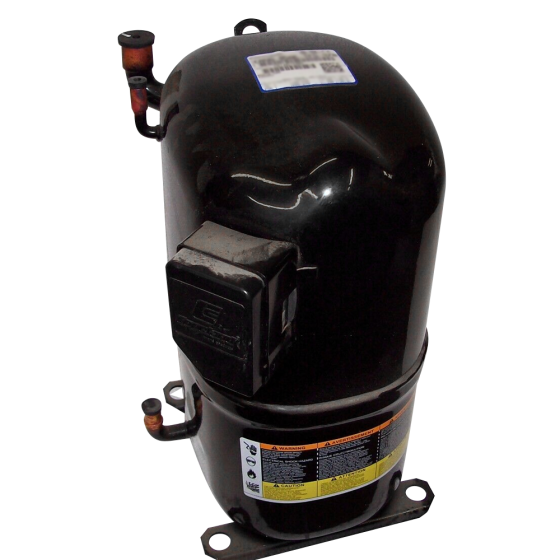

Copeland Hermetic Reciprocating Compressor R22, 59,600BTU, 208/230Vac, Single Phase
Item
CRNQ-050E-PFV-970
FEATURES & BENEFITS
• Compressor Type: Reciprocating• BTU Rating: 59,600
• Refrigerant: R22
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 55/440µF
• MCC: 48
• LRA: 142
• RLA: 34.3
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 15.29"
• Discharge Line Size: 1/2"
• Discharge Line Height: 2.78"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 34.3 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Reciprocating | BTU Rating | 56 to 60kBTU | Suction Line Height | 15.29" | Discharge Line Height | 2.78" | Discharge Line Size | 1/2" | Oil | POE (Polyester) | BTU Output | 61000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 92 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 13.000000 | Exterior Dimensions (H) (inches) | 20.000000 | Shipping Weight (lbs) | 94.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
