High Altitude Conversion Kit (LP), 3-15 Ton
PRODUCT DETAILS
These models are shipped from the factory equipped to operate with natural gas at elevations up to 2000 ft (610 m). The units must be modified if installed at elevations above 2000 ft (610 m), or if operated with liquid propane.
CARRIER MODELS
Check positions 7-8 on unit data plate for unit size.
MODEL / UNIT SIZES / NOMINAL TONS
48FC / 04-07 / 3-6
48GC / 04-06 / 3-5
48TC / 08-16 / 7.5-15
48HC / 07-14 / 6 -12.5
48KC / 04-06 / 3-5
48LC / 04-12 / 3-10
BRYANT MODELS
Check positions 6-7 on unit data plate for unit size.
MODEL / UNIT SIZES / NOMINAL TONS
582K / 04-07 / 3-6
581K / 04-06 / 3-5
580J / 08-16 / 7.5-15
581J / 07-14 / 6-12.5
582J / 04-06 / 3-5

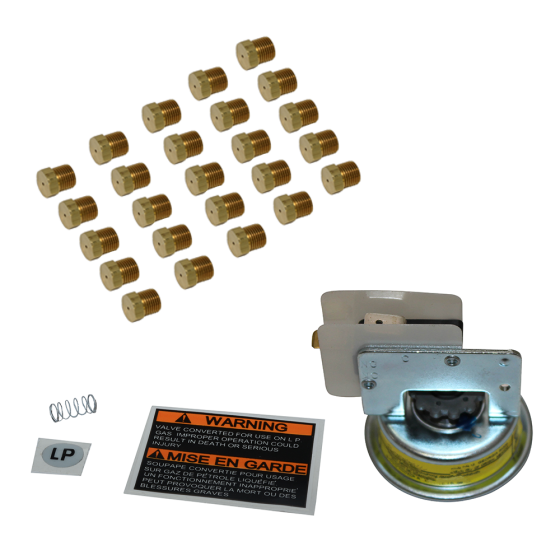

INCLUDES
• Orifice #51: LH32RF067 (QTY 5)
• Orifice #52: LH32RF065 (QTY 5)
• Orifice #53: LH32RF060 (QTY 5)
• Orifice #54: LH32RF055 (QTY 5)
• Orifice #55: LH32RF052 (QTY 5)
• 1/8" 90° Pipe Elbow: CA05RA001 (QTY 1)
• 1/8" 90° Street Pipe Elbow: CA15RA001 (QTY 1)
• 1/8" Pipe Nipple, 3/4" Length: CA01CA001 (QTY 1)
• 1/8" Pipe Nipple, 1-1/2" Length: CA01CA006 (QTY 1)
• 1/8" Pipe Nipple, 3-1/2" Length: CA01CA020 (QTY 1)
• LP Pressure Switch: HK02LB008 (QTY 1)
• Brown Wire: 99WG7373XC200918 (QTY 1)
• LP Conversion Spring: EF39ZW023 (QTY 2)
• LP Conversion Kit Rating Plate Label: 48TM502595 (QTY 1)
• LP Responsibility Label: 48TM501014 (QTY 1)
• High Altitude Responsibility Label: 48TM501015
• Gas Valve LP Conversion Label: 48TM501013
• Unit Warning (LP) Label: 48TM501012
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 2.500000 |
