High Altitude Conversion Kit (NG), 3-15 Ton

Item
CRLPELEV001A00
  • California Prop 65

PRODUCT DETAILS

These models are shipped from the factory equipped to operate with natural gas at elevations up to 2000 ft (610 m). These units must be modified if installed at elevations above 2000 ft (610 m), or if operated with liquid propane.

CARRIER MODELS
Check positions 7-8 on unit data plate for unit size.
MODEL / UNIT SIZES / NOMINAL TONS
48FC / 04-07 / 3-6
48GC / 04-06 / 3-5
48TC / 08-16 / 7.5-15
48HC / 07-14 / 6 -12.5
48KC / 04-06 / 3-5
48LC / 04-12 / 3-10

BRYANT MODELS
Check positions 6-7 on unit data plate for unit size.
MODEL / UNIT SIZES / NOMINAL TONS
582K / 04-07 / 3-6
581K / 04-06 / 3-5
580J / 08-16 / 7.5-15
581J / 07-14 / 6-12.5
582J / 04-06 / 3-5

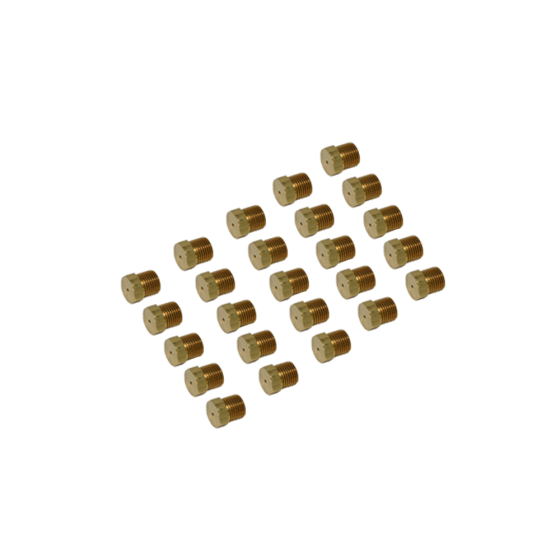

INCLUDES

• Orifice #31: LH32RF120 (QTY 5)
• Orifice #32: LH32RF116 (QTY 5)
• Orifice #33: LH32RF113 (QTY 5)
• Orifice #35: LH32RF110 (QTY 5)
• Orifice #36: LH32RF105 (QTY 5)
• Spring: EF39ZW023 (QTY 2)
• High Altitude Responsibility Label: 48TM501015 (QTY 1)
• Natural Gas Conversion Kit Rating Plate Label: 48TM502594 (QTY 1)

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 2
Exterior Dimensions (D) (inches) 7.000000
Exterior Dimensions (W) (inches) 7.000000
Exterior Dimensions (H) (inches) 7.000000
Shipping Weight (lbs) 2.500000
