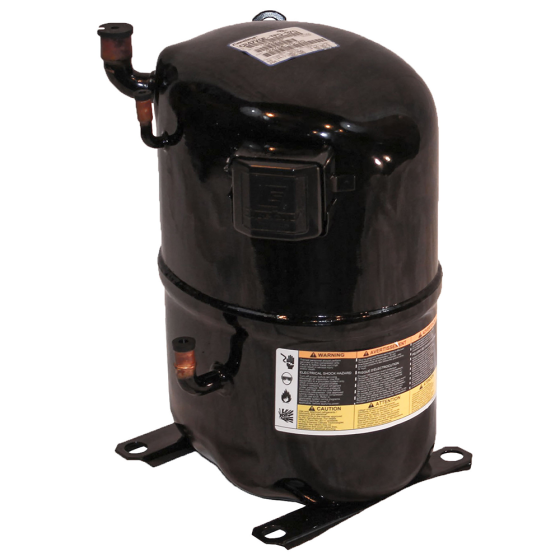

Copeland Hermetic Reciprocating Compressor R22, 47,000BTU, 460Vac, Three Phase
Item
CR47KQE-TFD-970
FEATURES & BENEFITS
• Compressor Type: Reciprocating• BTU Rating: 47,000
• Refrigerant: R22
• Connection Type: Flag Terminals
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 11.5
• LRA: 50
• RLA: 8.2
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 14.68"
• Discharge Line Size: 1/2"
• Discharge Line Height: 6.24"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 8.2 | Voltage | 460 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Reciprocating | BTU Rating | 46 to 50kBTU | Suction Line Height | 14.30" | Discharge Line Height | 5.86" | Discharge Line Size | 1/2" | Oil | POE (Polyester) | BTU Output | 47000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 73.3 | Exterior Dimensions (D) (inches) | 8.400000 | Exterior Dimensions (W) (inches) | 10.000000 | Exterior Dimensions (H) (inches) | 13.800000 | Shipping Weight (lbs) | 85.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
