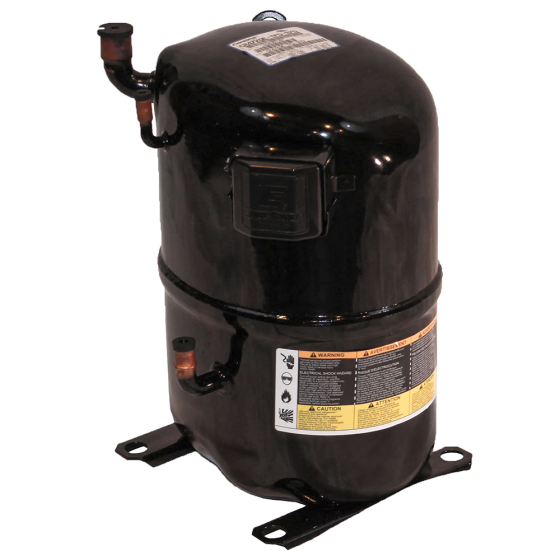

Copeland Hermetic Reciprocating Compressor R22, 47,000BTU, 208/230Vac, Three Phase
Item
CR47KQE-TF5-970
FEATURES & BENEFITS
• Compressor Type: Reciprocating• BTU Rating: 47,000
• Refrigerant: R22
• Connection Type: Flag Terminals
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 22.5
• LRA: 97
• RLA: 16.1
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 14.68"
• Discharge Line Size: 1/2"
• Discharge Line Height: 6.24"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 16.1 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 46 to 50kBTU | Oil | POE (Polyester) | Suction Line Height | 14.30" | Discharge Line Height | 5.86" | Discharge Line Size | 1/2" | BTU Output | 47000 | Compressor Type | Reciprocating | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 73.55 | Exterior Dimensions (D) (inches) | 8.400000 | Exterior Dimensions (W) (inches) | 9.800000 | Exterior Dimensions (H) (inches) | 13.800000 | Shipping Weight (lbs) | 85.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
