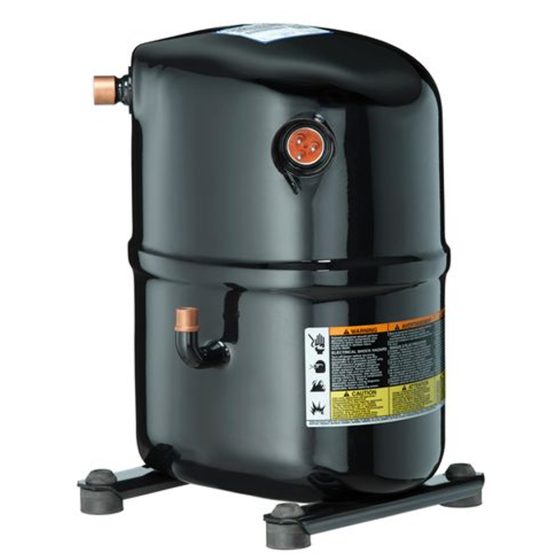

Copeland Hermetic Reciprocating Compressor R22, 42,000BTU, 208/230Vac, Three Phase
Item
CR42K6E-TF5-775
FEATURES & BENEFITS
• Compressor Type: Reciprocating• BTU Rating: 42,000
• Refrigerant: R22
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 19.65
• LRA: 91
• RLA: 14
• Hertz: 60
• Suction Line Size: 3/4"
• Suction Line Height: 12.63"
• Discharge Line Size: 1/2"
• Discharge Line Height: 6.24"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 14 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Reciprocating | BTU Rating | 41 to 45kBTU | Suction Line Height | 12.32" | Discharge Line Height | 5.86" | Discharge Line Size | 1/2" | Oil | POE (Polyester) | BTU Output | 42000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 71.4 | Exterior Dimensions (D) (inches) | 7.800000 | Exterior Dimensions (W) (inches) | 9.800000 | Exterior Dimensions (H) (inches) | 14.300000 | Shipping Weight (lbs) | 85.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
