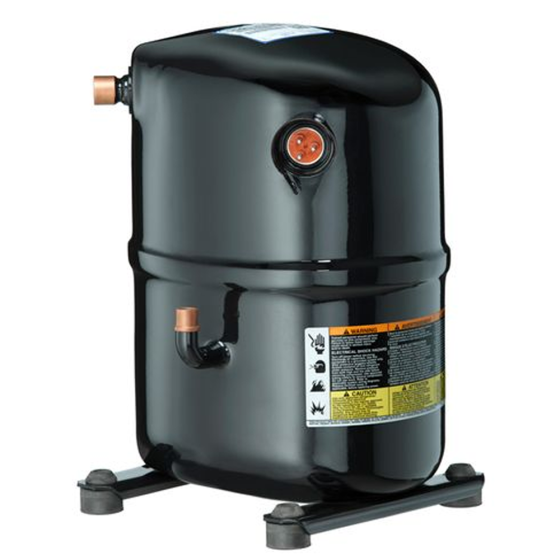

Copeland Hermetic Reciprocating Compressor R22, 24,000BTU, 208/230Vac, Single Phase
Item
CR24K6E-PFV-775
FEATURES & BENEFITS
• Compressor Type: Reciprocating• BTU Rating: 24,000
• Refrigerant: R22
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 35/370µF
• MCC: 17.4
• LRA: 61
• RLA: 12.4
• Hertz: 60
• Suction Line Size: 3/4"
• Suction Line Height: 11.51"
• Discharge Line Size: 1/2"
• Discharge Line Height: 6.24"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 12.4 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 21 to 25kBTU | Oil | POE (Polyester) | Suction Line Height | 11.20" | Discharge Line Height | 5.86" | Discharge Line Size | 1/2" | BTU Output | 22000 | Compressor Type | Reciprocating | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 62.1 | Exterior Dimensions (D) (inches) | 10.400000 | Exterior Dimensions (W) (inches) | 9.500000 | Exterior Dimensions (H) (inches) | 12.800000 | Shipping Weight (lbs) | 73.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
