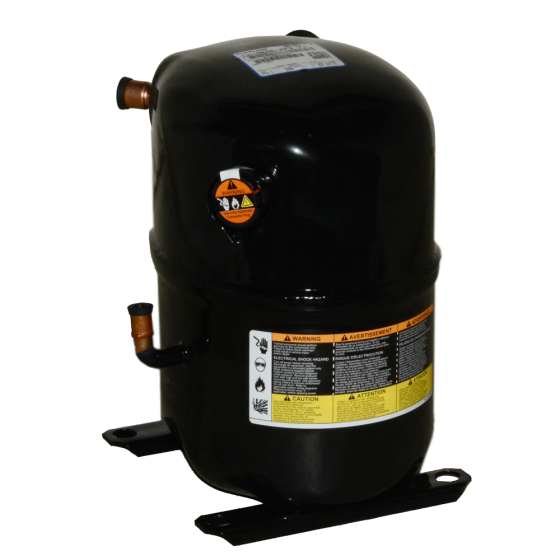

Hermetic Compressor 18,000 Btu, 208/230, 1 Phase, 25µF/370Vac
Item
CR18K6E-PFV-775
FEATURES & BENEFITS
• Compressor Type: Reciprocating• BTU Rating: 18,000
• Refrigerant: R22
• Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 208/230
• Single Phase
• Capacitor Rating: 25/370
• RLA: 10.4
• Hertz: 60
• Suction Line Size: 3/4"
• Suction Line Height: 10.95"
• Discharge Line Size: 1/2"
• Discharge Line Height: 5.86"
| Specification | |
|---|---|
| BTU Rating | 16 to 20kBTU | Oil | POE (Polyester) | Discharge Line Height | 5.86" | Discharge Line Size | 1/2" | Suction Line Height | 10.95" | Refrigerant | R22 |
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 10.4 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 65.9 | Exterior Dimensions (D) (inches) | 14.700000 | Exterior Dimensions (W) (inches) | 14.800000 | Exterior Dimensions (H) (inches) | 18.500000 | Shipping Weight (lbs) | 65.900000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
