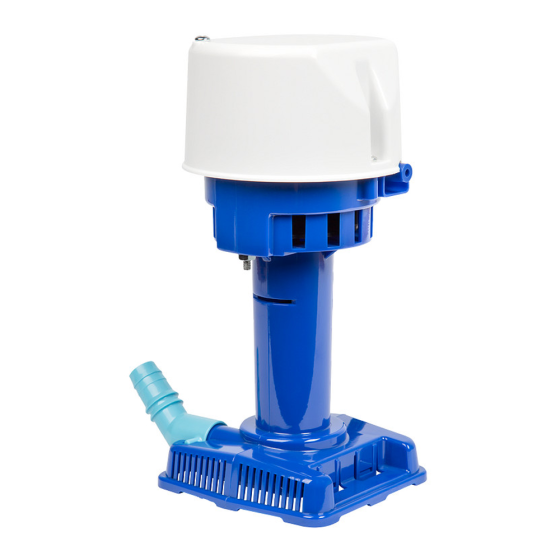

LittleGIANT® Cooler Pump 230Vac, 7,000 CFM, 307 GPH

Item
CP1-230
  • California Prop 65

APPLICATIONS

For use in evaporative coolers, sales displays, laboratories, water bath circulation and many other uses. Ideal as a universal OEM replacement pump.

Ideal for residential, commercial, and industrial cooler pump replacement.

FEATURES & BENEFITS

• High quality concentric fan-cooled double coil motor
• Thermal overload protection
• One-piece corrosion resistant steel shaft
• Universal mounting configurations
• 45° discharge adapter
• Optional 900 elbow with bleed off port available
• Low pump down and recovery level
• Grounded electric plug
• 6 ft electric cord
• Flame retardant housing
• Snap-off volute plate for easy cleaning
• Connection Size: 5/8 in. & 3/4 in.
• HP: 1/70 hp
• Frequency: 50/60 Hz
• Volts: 230 VAC
• Maximum CFM: 7,000
• Maximum Flow Rate - 60Hz: 5.12 GPM / 307 gph
• Flow Rate At 1ft: 5.12 GPM / 307 gph
• Shut-Off: 9.5 ft
• Safety Switch: No
• Check Valve: Yes
• Tubing Included: No
• Electrical Agency Approvals: CSA/UL
• Standard Warranty: 12 Months

Electrical
Voltage 230
Safety Standards
California Prop 65 Yes
Specification
Gallons Per Hour 307 @ 1 ft. Head Height
Maximum CFM 7,000
Weights and Dimensions
Operating Weight (lbs) 2.8
Exterior Dimensions (D) (inches) 4.500000
Exterior Dimensions (W) (inches) 4.800000
Exterior Dimensions (H) (inches) 9.400000
Shipping Weight (lbs) 3.000000
