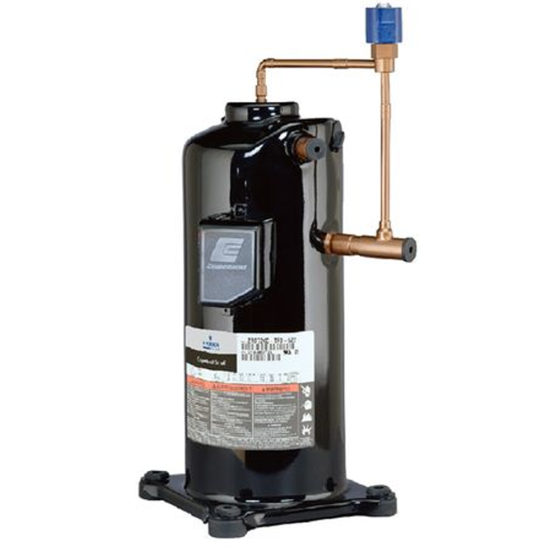

Copeland Hermetic Scroll Compressor R410A, 104,000BTU, 460Vac, Three Phase (Digital)
Item
ZPD104KCE-TFD-950
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 104,000
• Refrigerant: R410A
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 23
• LRA: 130
• RLA: 16.4
• Hertz: 60
• Suction Line Size: 1-1/8"
• Suction Line Height: 14.60"
• Discharge Line Size: 7/8"
• Discharge Line Height: 20.75"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | Voltage | 460 |
| Specification | |
|---|---|
| BTU Rating | 91 to 110kBTU | Oil | POE (Polyester) | Compressor Type | Scroll | Refrigerant | R-410A |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 100 | Exterior Dimensions (D) (inches) | 14.000000 | Exterior Dimensions (W) (inches) | 14.000000 | Exterior Dimensions (H) (inches) | 36.000000 | Shipping Weight (lbs) | 100.000000 |
