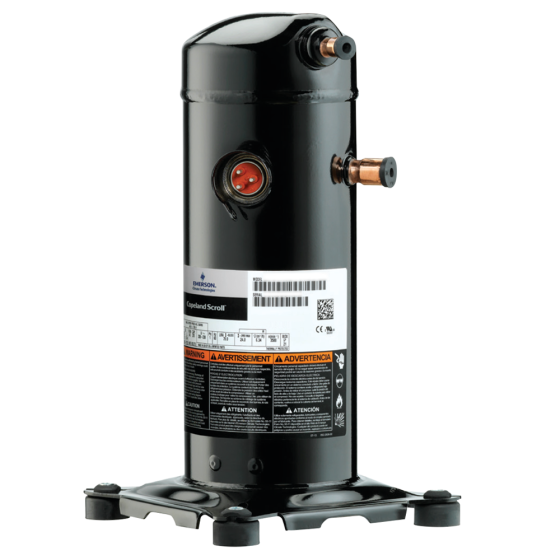

Copeland Hermetic Scroll Compressor R410A, 51,000BTU, 460Vac, Three Phase

Item
ZP51K6E-TFD-830
  • California Prop 65

FEATURES & BENEFITS

• Compressor Type: Scroll
• BTU Rating: 51,000
• Refrigerant: R410A
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 12.1
• LRA: 52
• RLA: 8.6
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.5"
• Discharge Line Size: 1/2"
• Discharge Line Height: 15.34"

Electrical
Hertz 60
Phase 3
Voltage 460
Specification
BTU Rating 51 to 55kBTU
Oil POE (Polyester)
Discharge Line Size 1/2"
Compressor Type Scroll
Refrigerant R-410A
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 85
Exterior Dimensions (D) (inches) 14.000000
Exterior Dimensions (W) (inches) 20.000000
Exterior Dimensions (H) (inches) 13.000000
Shipping Weight (lbs) 85.000000
