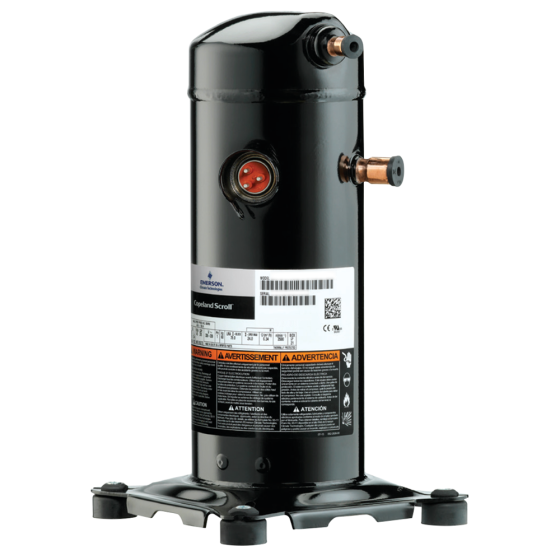

Copeland Hermetic Scroll Compressor R410A, 24,000BTU, 208/230Vac, Three Phase
Item
ZP24K5E-TF5-830
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 24,000
• Refrigerant: R410A
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 13
• LRA: 58
• RLA: 9.3
• Hertz: 60
• Suction Line Size: 3/4"
• Suction Line Height: 10.3"
• Discharge Line Size: 1/2"
• Discharge Line Height: 14.15"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 9.3 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 21 to 25kBTU | Suction Line Height | 10.3" | Discharge Line Height | 14.15" | Discharge Line Size | 1/2" | Oil | POE (Polyester) |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 75 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 21.000000 | Exterior Dimensions (H) (inches) | 13.000000 | Shipping Weight (lbs) | 75.000000 |
